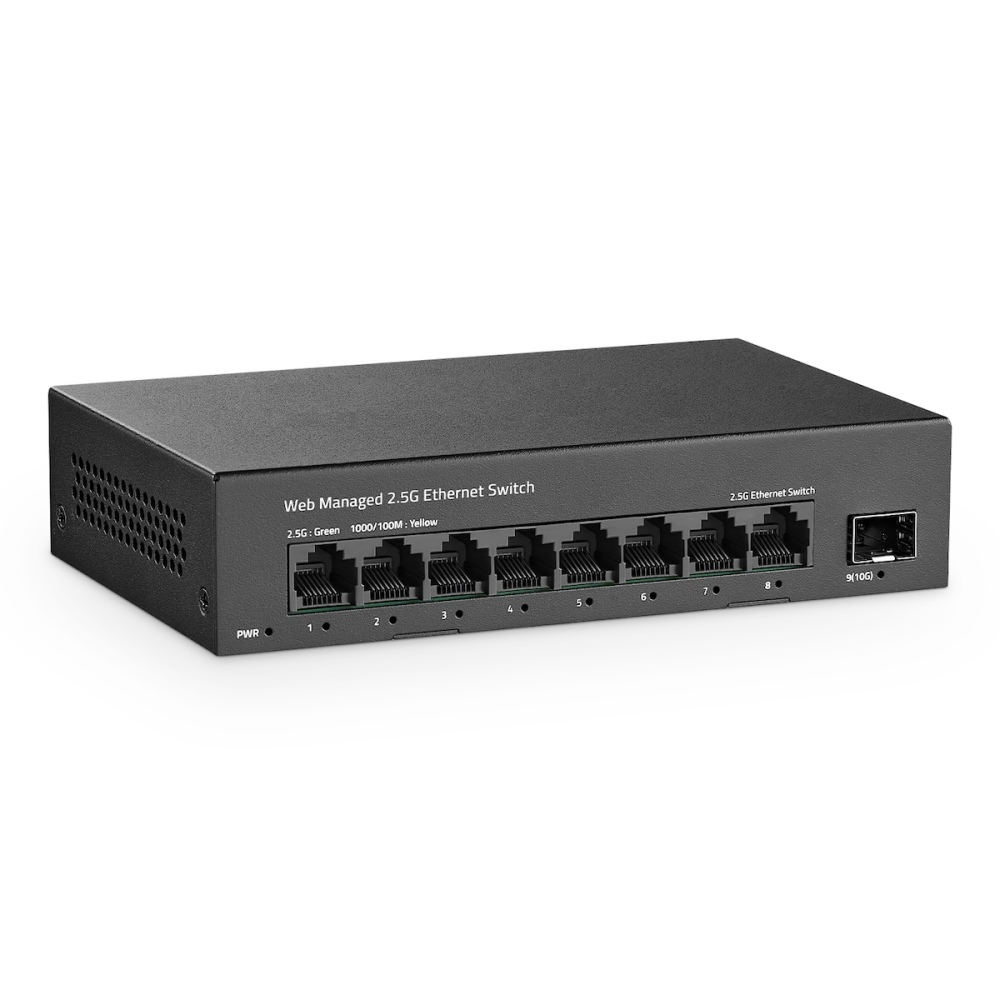

8 Port 2.5G Managed Switch, 8 x 2.5Gbps Base-T Ports and 10G SFP+ Slot, Support LACP/QOS/VLAN/IGMP, Mini Metal Fanless 2.5Gb YuLinca Easy Web Switch

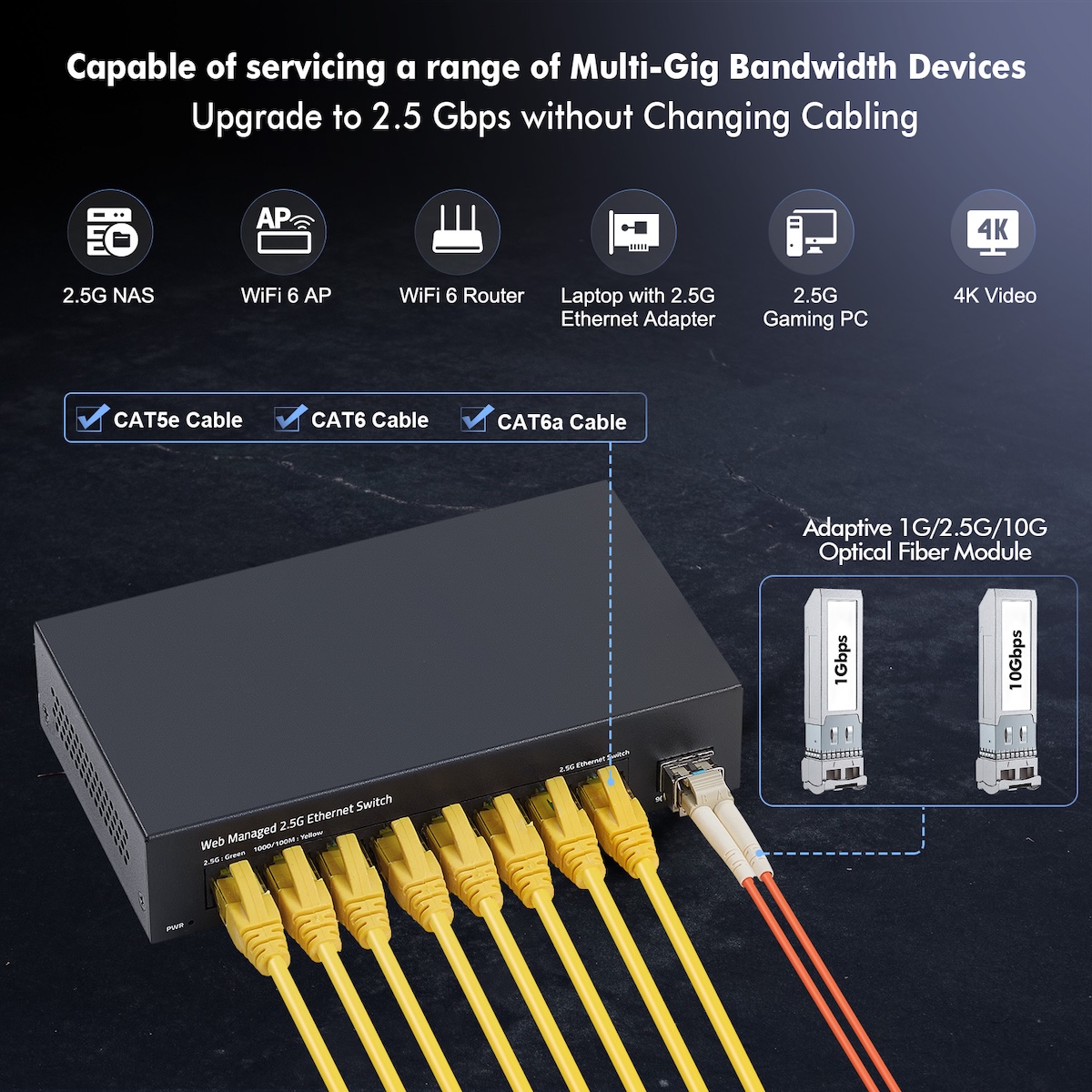

The 2G09110GSMN is a multigigabit Web Smart Managed Ethernet Switch, It comes with 8x 2.5Gbase-T ports (supporting 10/100/1000M/2.5G adaptive speeds) and 1x 10G SFP port (compatible with 1G/10G modules), with 60Gbps switching capacity to ensure fast, stable connections. It is compatible with 2.5G/10G devices (such as NAS, APs, and PCs) for smooth data transmission.

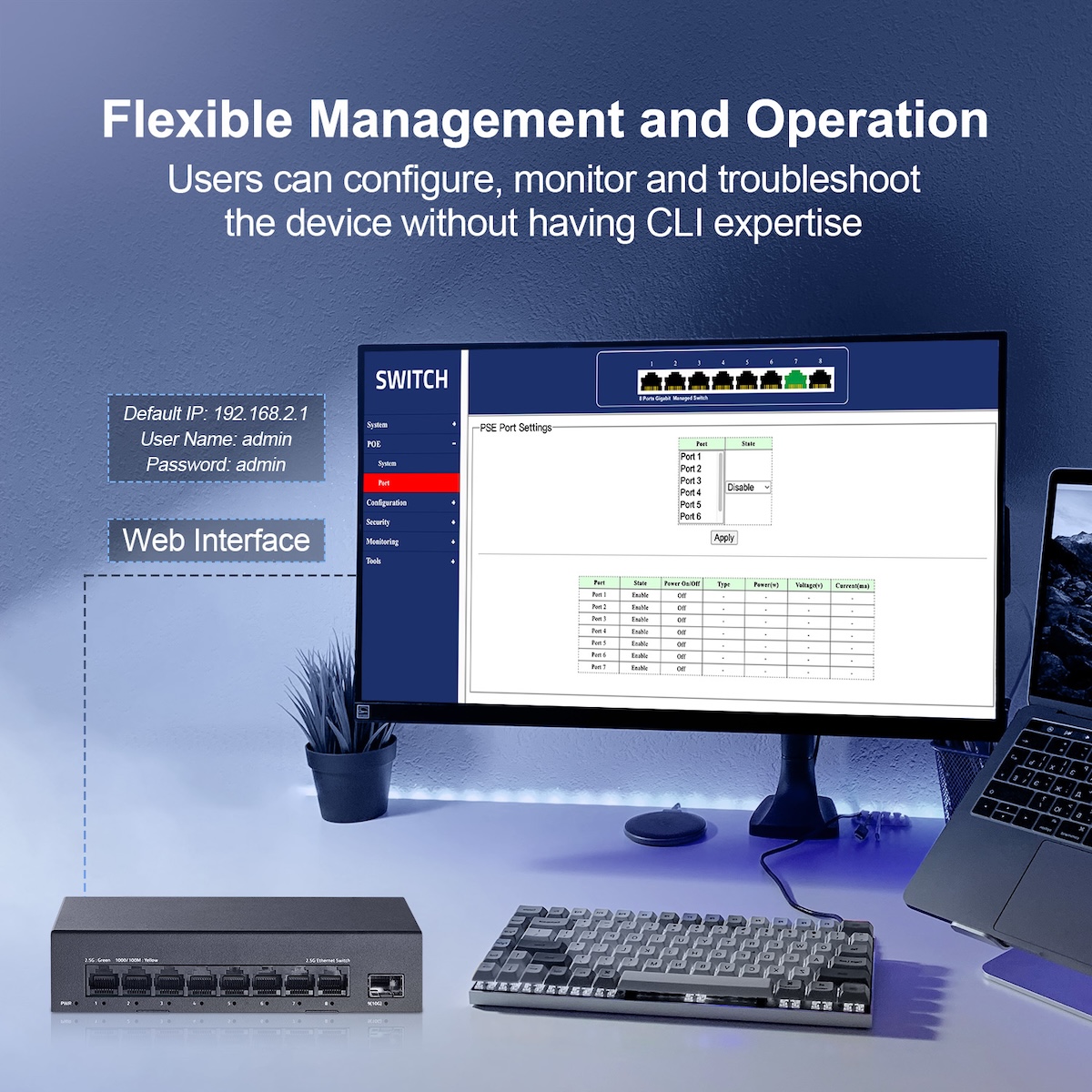

As a web managed device, it support Layer 2 configurations, including VLAN, QoS, security settings, multicast, LACP ect. It features a metal casing, 4KV lightning protection, a fanless, silent and energy-efficient design, dual cooling vents, and an operating temperature range of -10~50℃. LED indicators enable easy network status monitoring.
With a compact design supporting desktop/wall-mounting, it is suitable for home entertainment (4K video, gaming), offices, and professional setups (servers, WiFi 6 APs).

Product Highlights

• 8×100/1000/2500Mbps RJ45 Ports + 1×10G SFP+ Port
• Meets IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, and IEEE 802.3x Standards
• All RJ45 ports support 100/1000/2500Mbps adaptive speeds
• Support L2 features: Port configuration, Link Aggregation(Static Group/LACP), Storm Control, Port Mirroring, Loopback Detection, VLAN, STP/RSTP, IGMP, QoS, Port Statistics
• Supports Automatic Port Flipping (Auto MDI/MDIX) — no manual cable adjustment required
• Panel indicator lights display real-time operating status and assist in fault analysis & troubleshooting
• Adopts IEEE 802.3x Standard for full-duplex mode and Backpressure Standard for half-duplex mode, ensuring stable data transmission

• Specification Parameters

  Model	2G09110GSMN

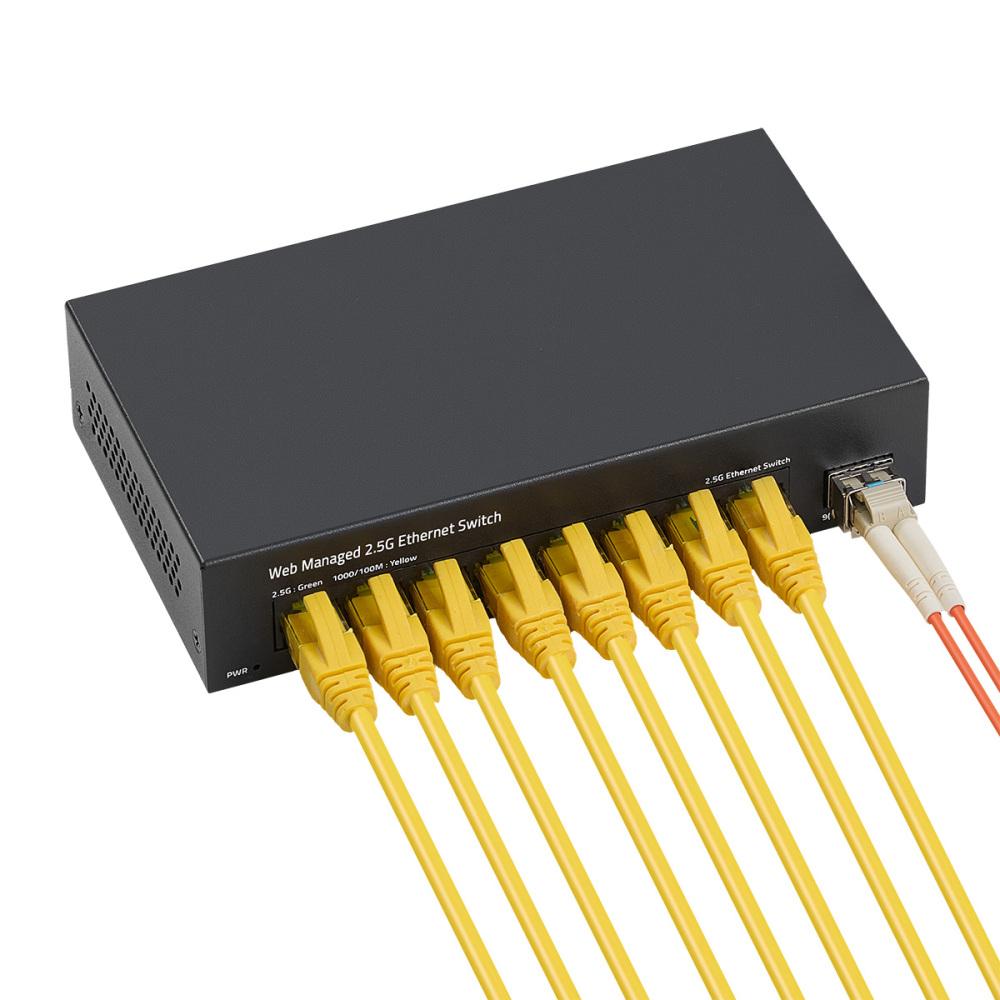

  Interface	8* 2.5G RJ45 port 1 * 10G SFP+ port
  Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control)
  Switching Capacity	60Gbps
  Packet Forwarding Rate	44.64Mpps
  Packet Buffer	8Mbit
  MAC Address Table	4K
  Transmission Method	Store and Forward
  Environment	Operating Temperature: 0~40°C, Storage Temperature:  -40 °C to 70 °C, Operation Humidity: 10%~90%，non condensing, Storage Humidity 5%~95%，non condensing

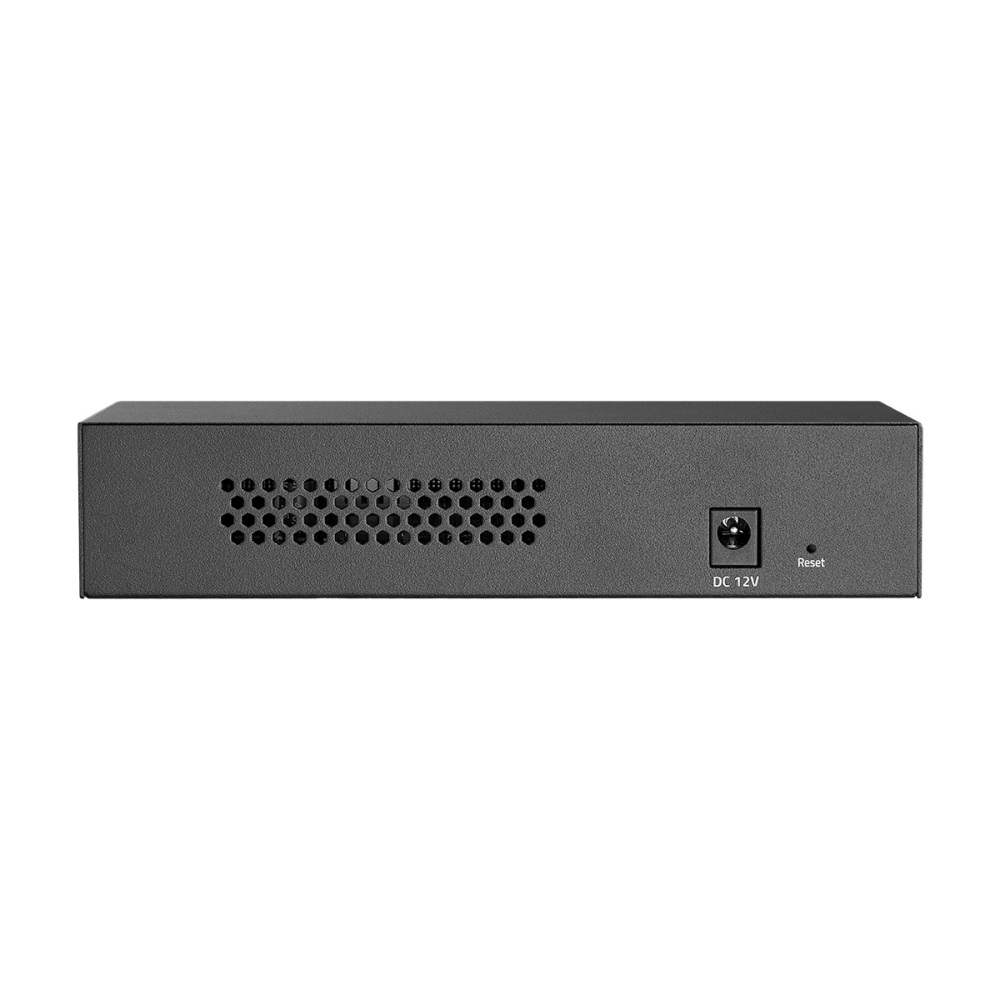

  Power Supply	DC 12V 1A
  Mainboard Power Consumption	8.75W
  Structure Information	Product Dimensions :160*90*35mm Packaging Dimensions : 175*120*63mm Product Net Weight: 0.25kg Product Gross Weight: 0.38kg
  Packing List	switch 1pcs, ac adapter 1pcs, instruction manual 1pcs
  Fan Quantity	0
  Installation	desktop/Wall Mount

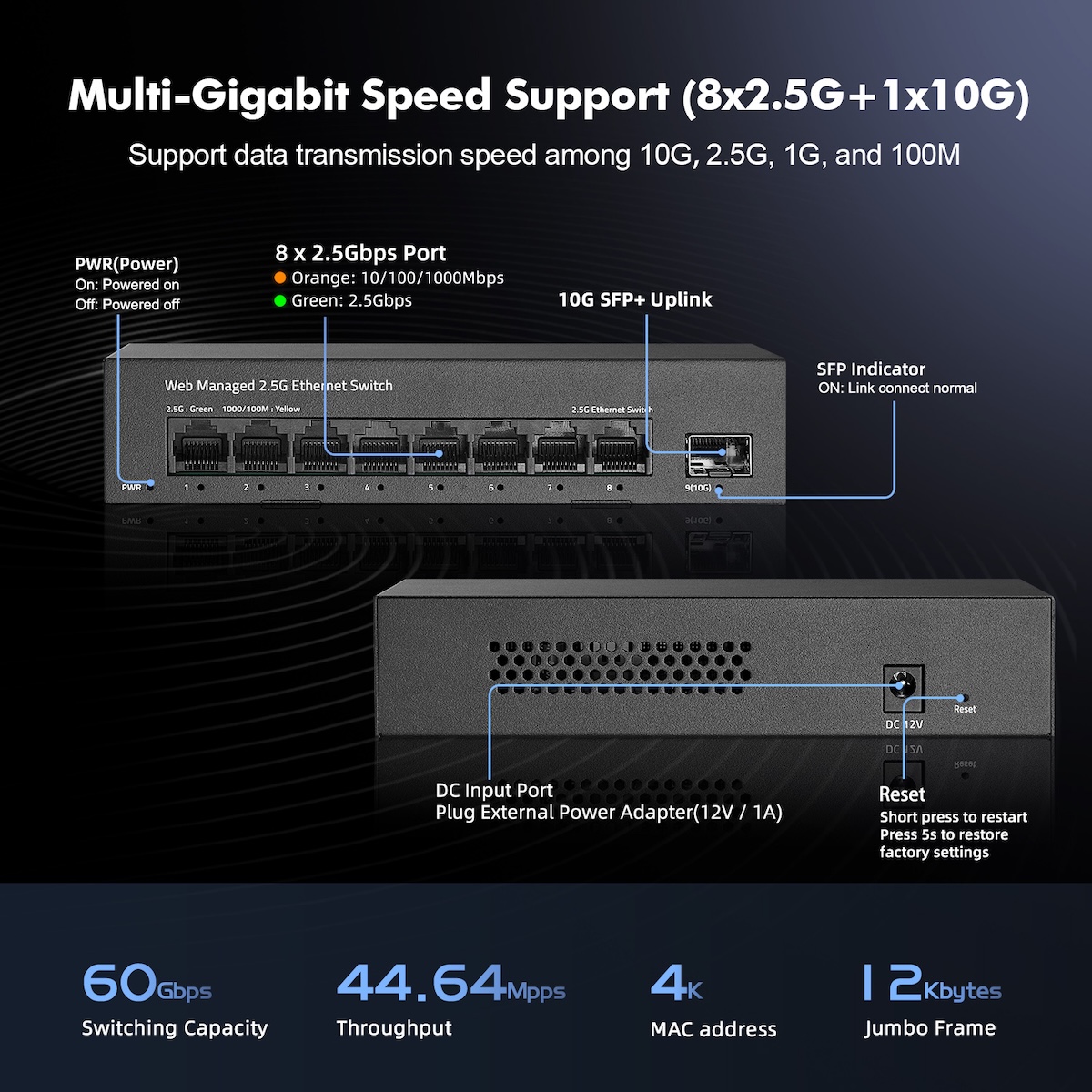

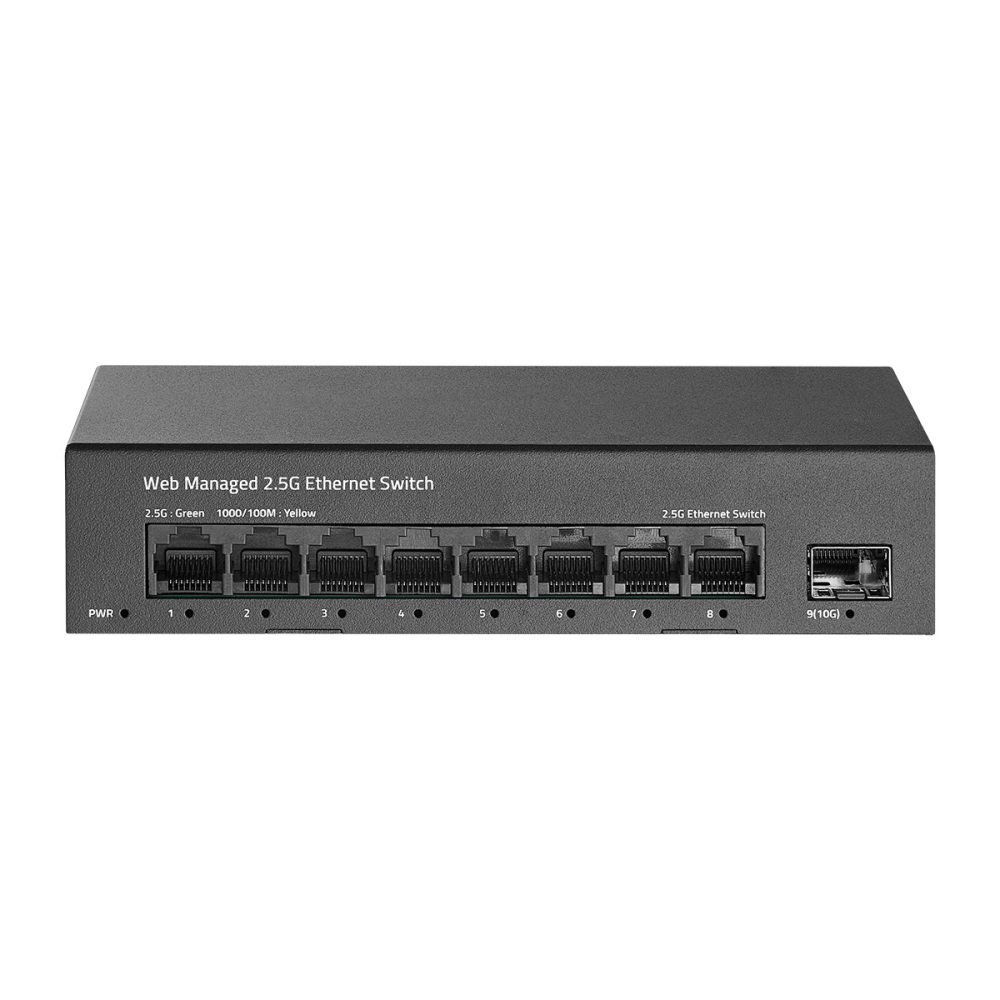

  Indicator	PWR: On: Powered on, Off: Powered off 1-8 port: Green Light On：2.5G Link normal, Yellow Light On：10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting 9 SPF+ port: Blue Light On：10G Link normal, Green Light On：2.5G Link normal, Off: Link blocked, Flashing: Data transmitting
  L2 Features	Port configuration, Link Aggregation(Static Group/LACP), Storm Control, Port Mirroring, Loopback Detection, VLAN, STP/RSTP, IGMP, QoS, Port Statistics
