6 Port Mini Gigabit Industrial DIN-Rail Ethernet Switch, 4 x 100/1000Mbps RJ45 Ports, 1G RJ45 Uplink, 1G SFP, Unmanaged IP30 (-40~185°F) Hardened YuLinca Switch

SKU: IG062GS

6 Port Gigabit Industrial Switch - This network switch includes 5 port gigabit ethernet, 1 port sfp uplink port. RJ45 port support 10/100/1000Mbps adaptive, compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x ethernet standards.

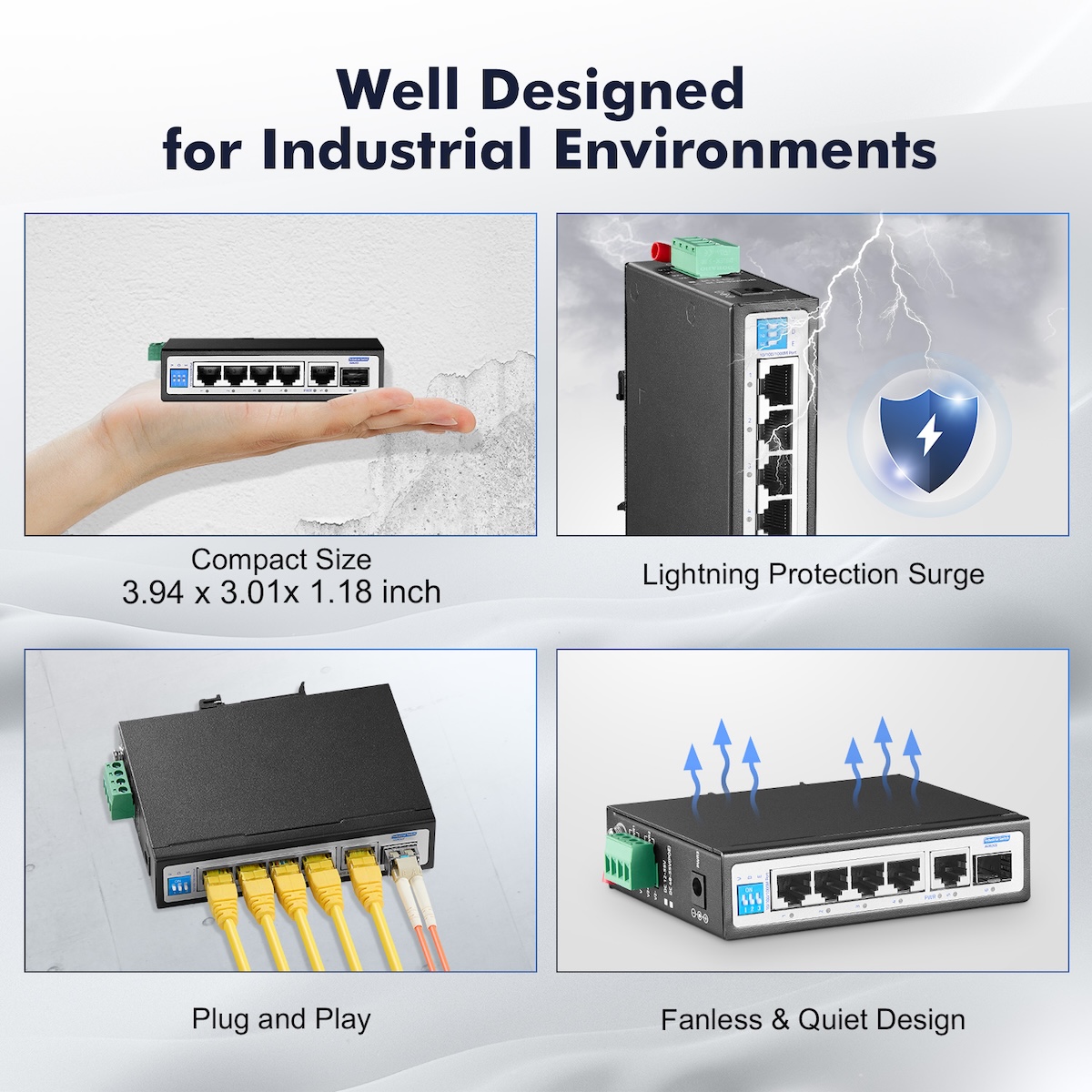

Industrial Grade Quality - The switch is made of industrial-grade aluminum alloy, which is more sturdy, compact design and small size, integrated DIN-rail and wall mount kit, installation and disassembly are very simple.
Redundant Power - 1 DC Power and 2 Industrial power(4 pin terminal), total of 3-way power supply is more flexible. Automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability. ***Please note that the power adapter is not included***

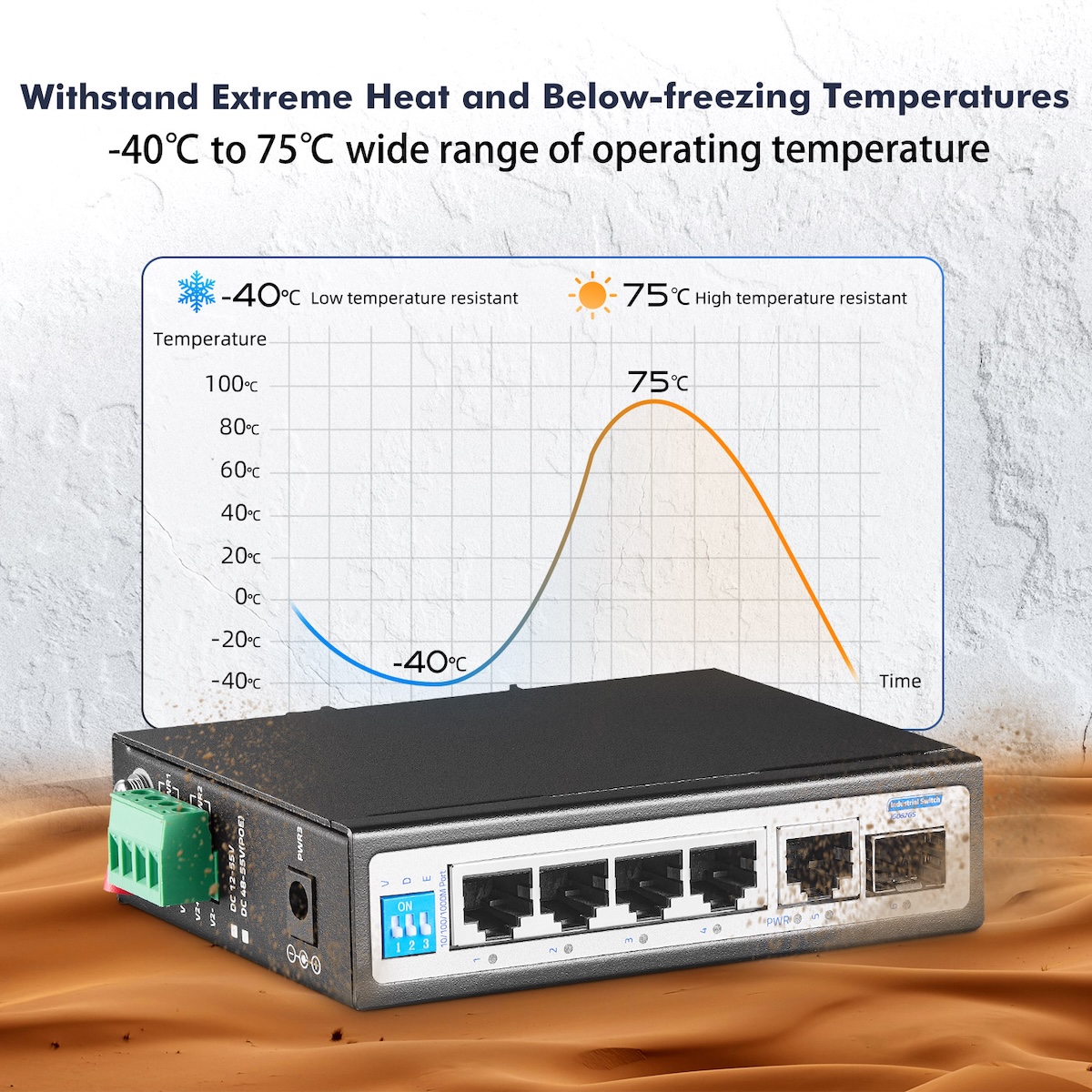

Extreme Temperature Switch - IP30 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments.
Unmanaged Industrial Switch - The gigabit switch support auto-negotiation, plug and play, no configuration needed, low-power consumption CPU, no fan quiet operation, green energy saving, suitable for various networks, such as home office, computer room, warehouse, factory, compact control box and other industrial scenarios with ethernet access.

4.9 (23 Reviews)

128 Sold

$52.99

Received successfully

Coupon Code

Description

The IG062GS is a high-performance intelligent industrial Ethernet switch, equipped with 4 gigabit Ethernet ports, 1 gigabit uplink Ethernet port, and 1 gigabit SFP optical port, meeting high-speed data transmission needs across diverse scenarios. It supports both DIN-rail and wall-mount installation methods, adapting to various installation environments in industrial sites; and adopts a dual-power input design (DC 12-55V) to ensure stable and uninterrupted power supply.
The device operates within a temperature range of -40℃ to +85℃, has passed the industrial environmental adaptability certification, and complies with FCC, CE, CCC, and RoHS standards. Its reliable industrial-grade hardware design ensures uninterrupted and stable operation of your automation system.
This series of industrial switches has a wide range of applications, suitable for industries such as wind power, electricity, assembly automation, metro PIS systems, power SCADA systems, sewage treatment, metallurgy, intelligent transportation, rail transportation, and military engineering. It also features green low-power consumption, making it a highly adaptable network connectivity solution for industrial scenarios.

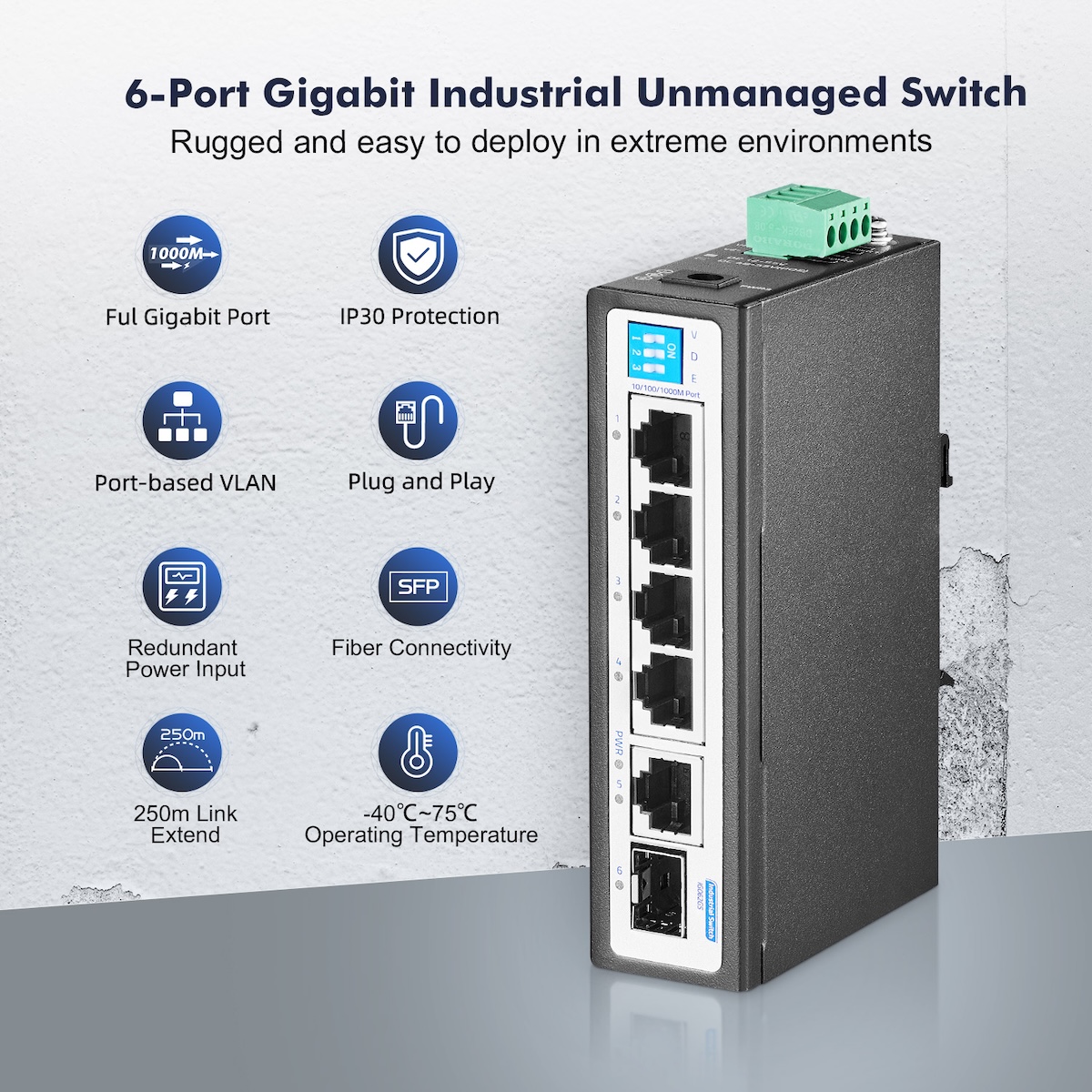

Product Highlights

Support 4 * Gigabit Ports+1* Gigabit Uplink Ethernet Port+1*Gigabit SFP Port
40℃-75℃ operation, 4KV lightning protection, air 15KV, contact 8KV anti-static
4PIN industrial terminal + DC2.1 input interface, DC12-55V wide voltage input
3-gear DIP support VLAN, Genius, Extend three modes

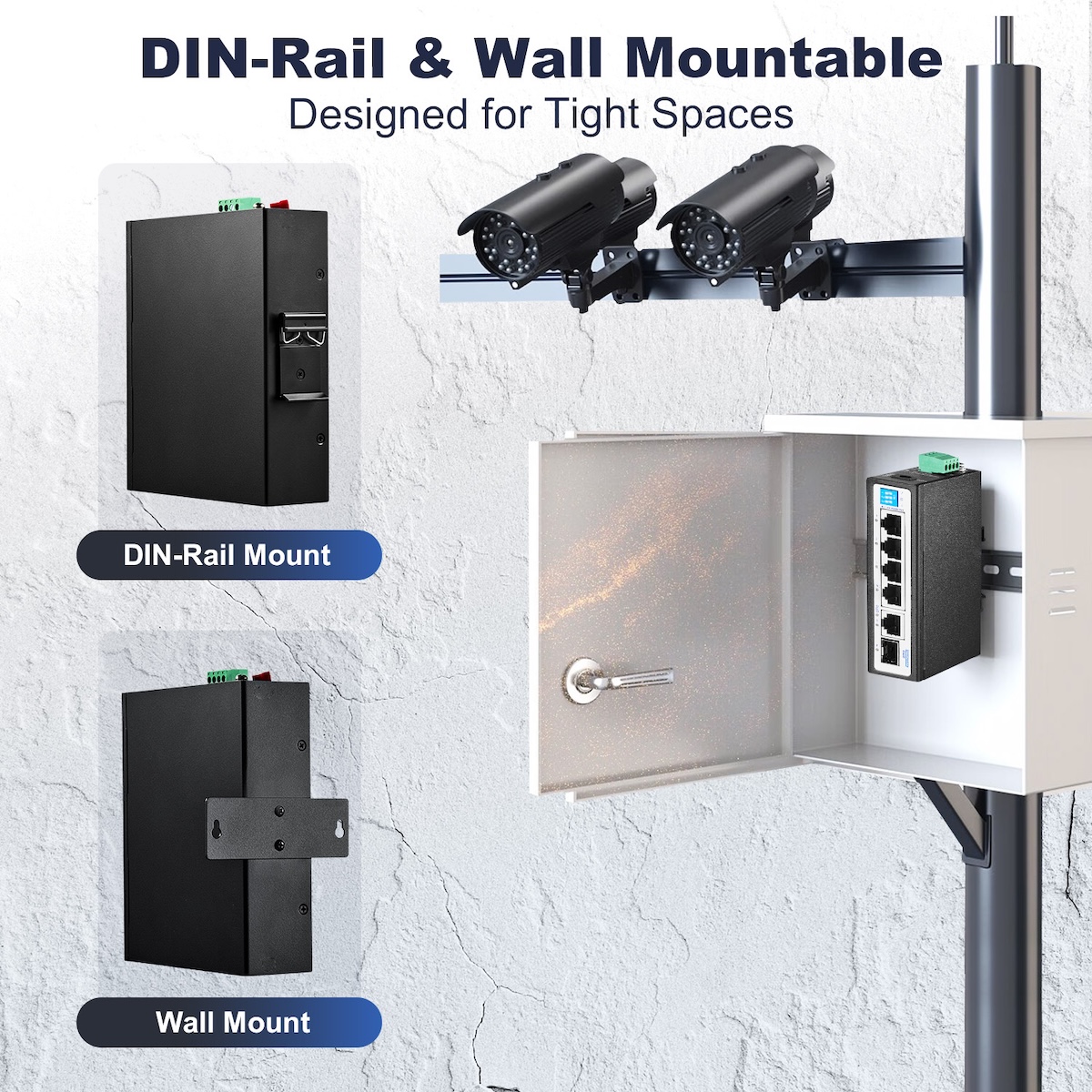

Supports rail and wall mounting

Specification Parameters

Model	IG062GS
Ethernet	4* 1000M RJ45 Ports 1* Gigabit Uplink Ports 1*Gigabit SFP Ports
Bandwidth	12Gbps
Packet Forwarding Rate	8.928Mpps
MAC address	1K
Transfer Mode	Store and forwarding
MTBF	100000 hours
Network Protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control)
Network Medium	10BASE-T: Cat 3, 4, 5 or above UTP(≤100 meter) 100BASE-TX: Cat 5 or above UTP (≤100 meter) 1000BASE-TX: Cat 5 or above UTP (≤100 meter)
Fiber Media	Multi-mode：850nm，1310nm. transmission distance：550m/2Km Single-mode：1310nm，1550nm. transmission distance：20/40/60/80/100/120Km
Working Environment	Working Temperature：-40~75°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum 10,000 feet Storage Height：Maximum 10,000 feet
LED Indicator	PWR on: The device is powered on, Off: The device is not powered on 1-6 Green on: The port is connected normally, Blinking: port data transfer, Off: Port not connected

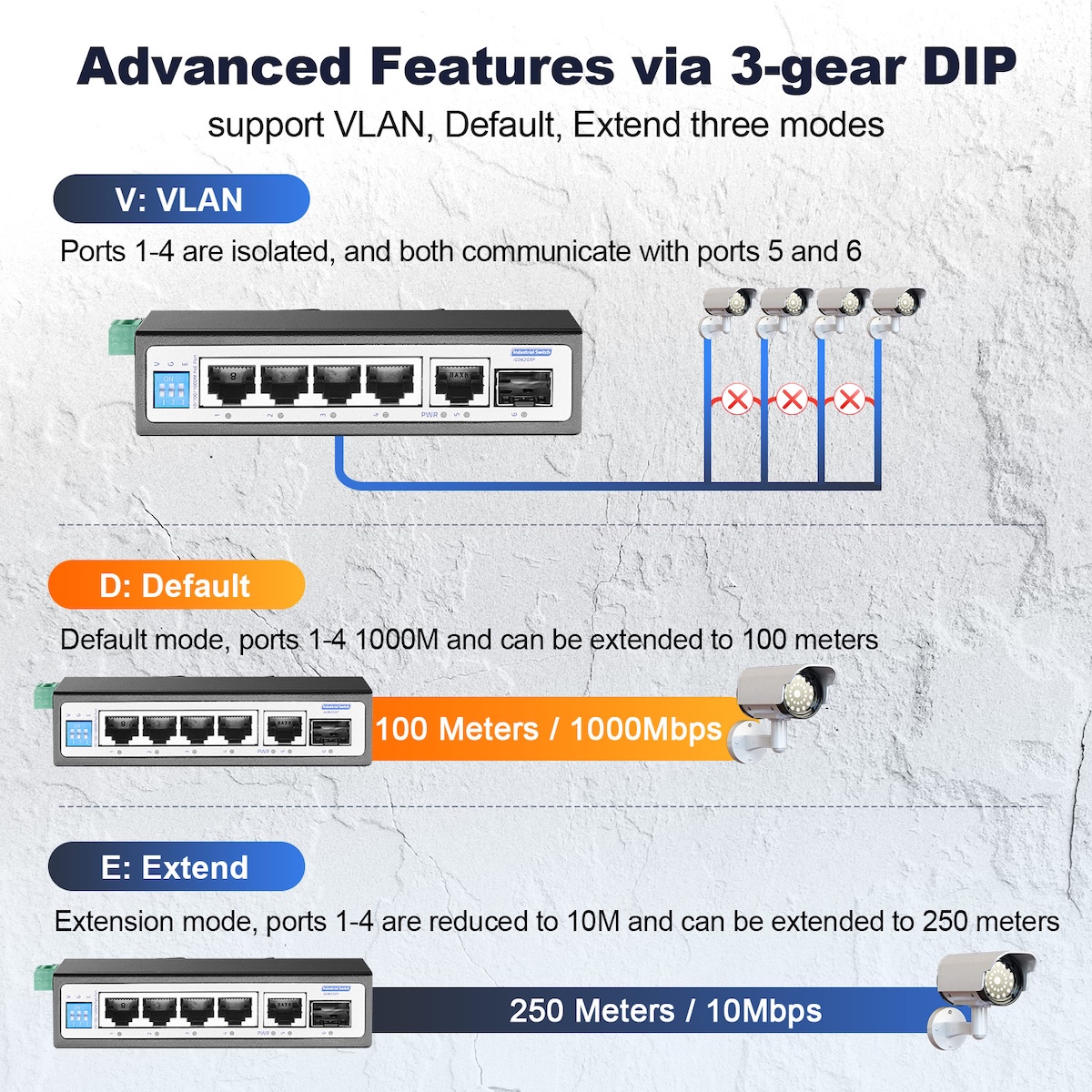

DIP function	V: VLAN mode, ports 1-4 are isolated, and both communicate with ports 5 and 6 G: Normal mode E: Extension mode, ports 1-4 are reduced to 10M, which can be extended to 250 meters
Dimension	Product Size：1208730 mm Packing size: 17513055mm Product net weight: 0.441 KG Product gross weight: 0.530 KG (excluding power supply）

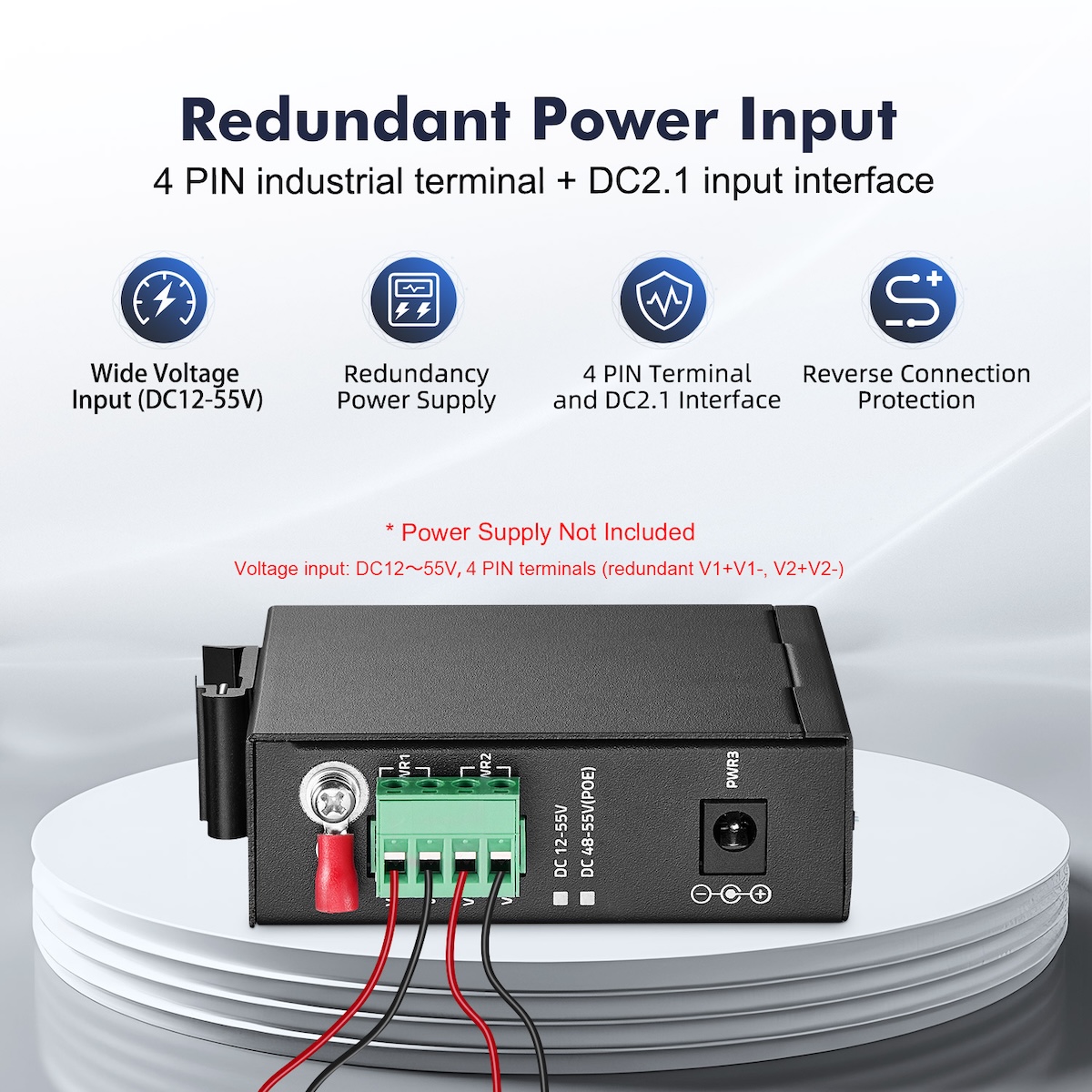

Power Voltage	Voltage input: DC12～55V Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-) / DC 2.1 (DC 2.1 cannot be used together with V1 and V2)
Package List	Industrial Switch: 1 PC; User Manual: 1PC; Pull-arm: 1 PC
