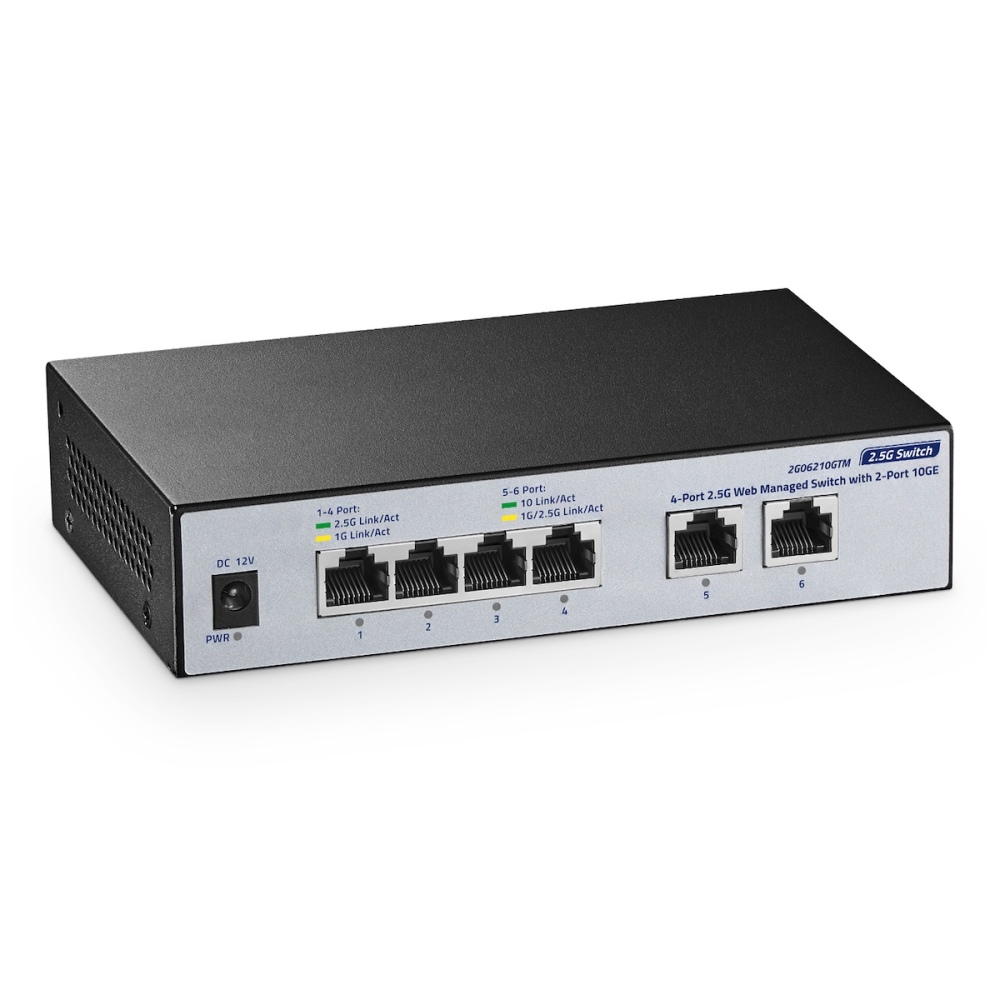

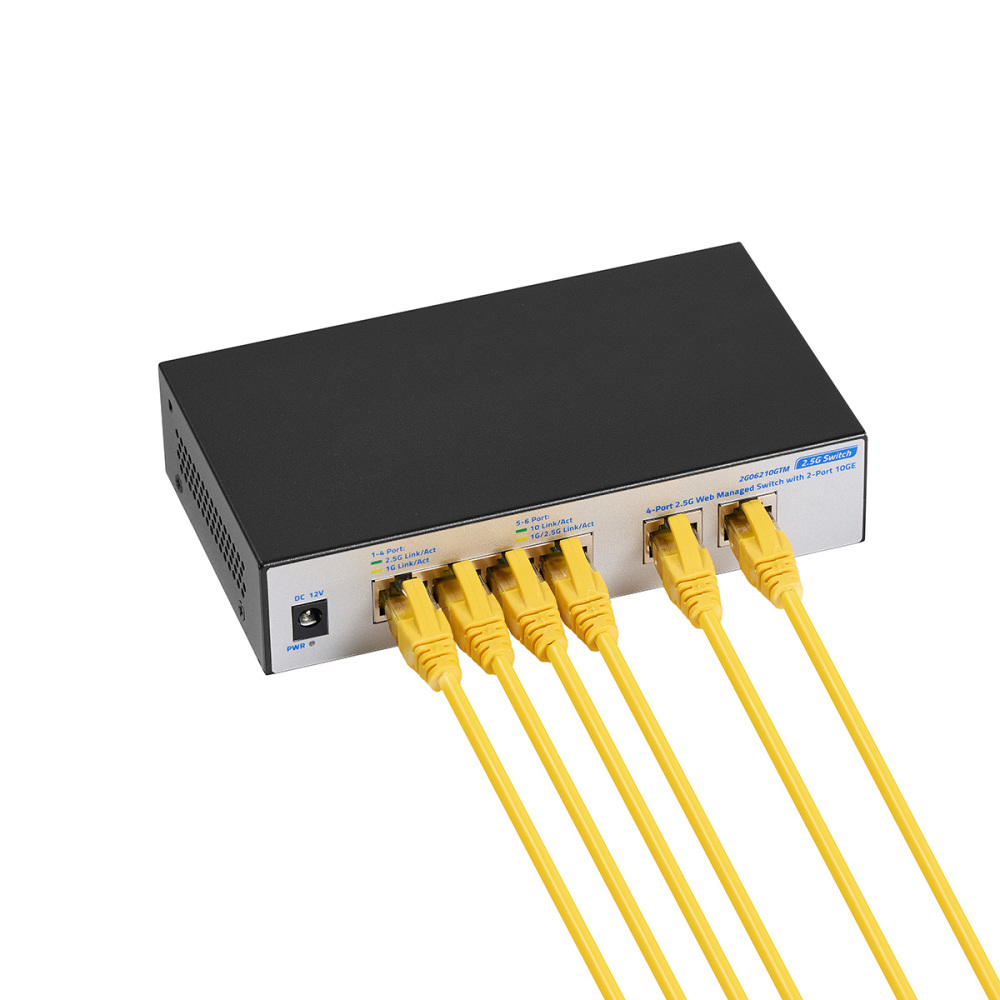

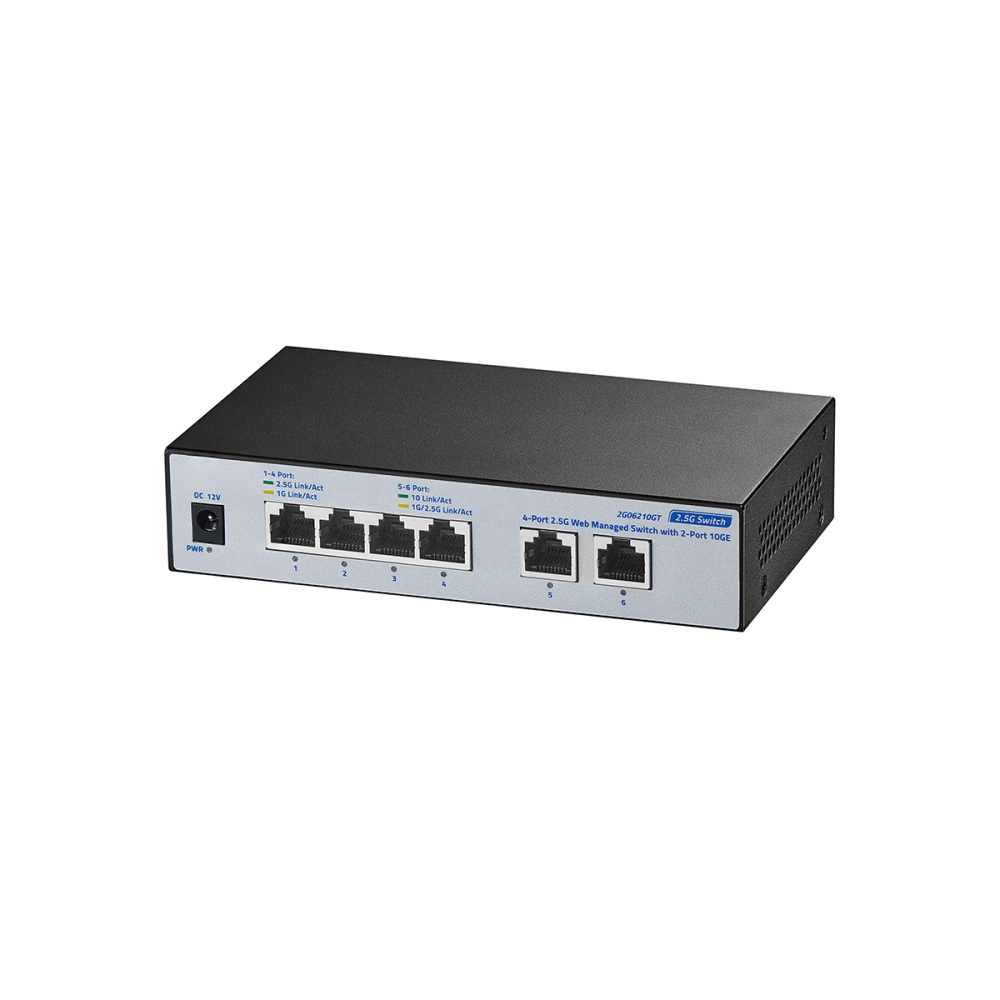

10G Web Managed Switch, 4x2.5G + 2x10G RJ45 Ports, LACP/VLAN/QoS, Fanless Metal, for NAS/Gaming/8K Streaming

SKU: 2G06210GTM

2.5G & 10G Ports - Equipped with 4×2.5G RJ45 ports (supporting 2.5Gbps/1Gbps) and 2×10G RJ45 ports (supporting 10Gbps/5Gbps/2.5Gbps/1Gbps). The ports feature auto-sensing for device speeds, enabling seamless bandwidth upgrades without manual adjustment.
Advanced Web Management - This multi-gigabit managed switch supports device/port status query and a full range of Layer 2 (L2) configurations, including VLAN, QoS, security settings, multicast, static link aggregation, LACP, MAC address table management, and diagnostics, among others. Its functionality is far more comprehensive than that of unmanaged switches. NOTE: When making modifications via the web interface, please save the configuration—this ensures settings will not be lost after the switch reboots.
60Gbps High Bandwidth - Boasting a switching capacity of 60Gbps, the switch’s two 10G ports deliver high-speed network connectivity. It provides a cost-effective solution for expanding 10G link capacity in small-to-medium networks.

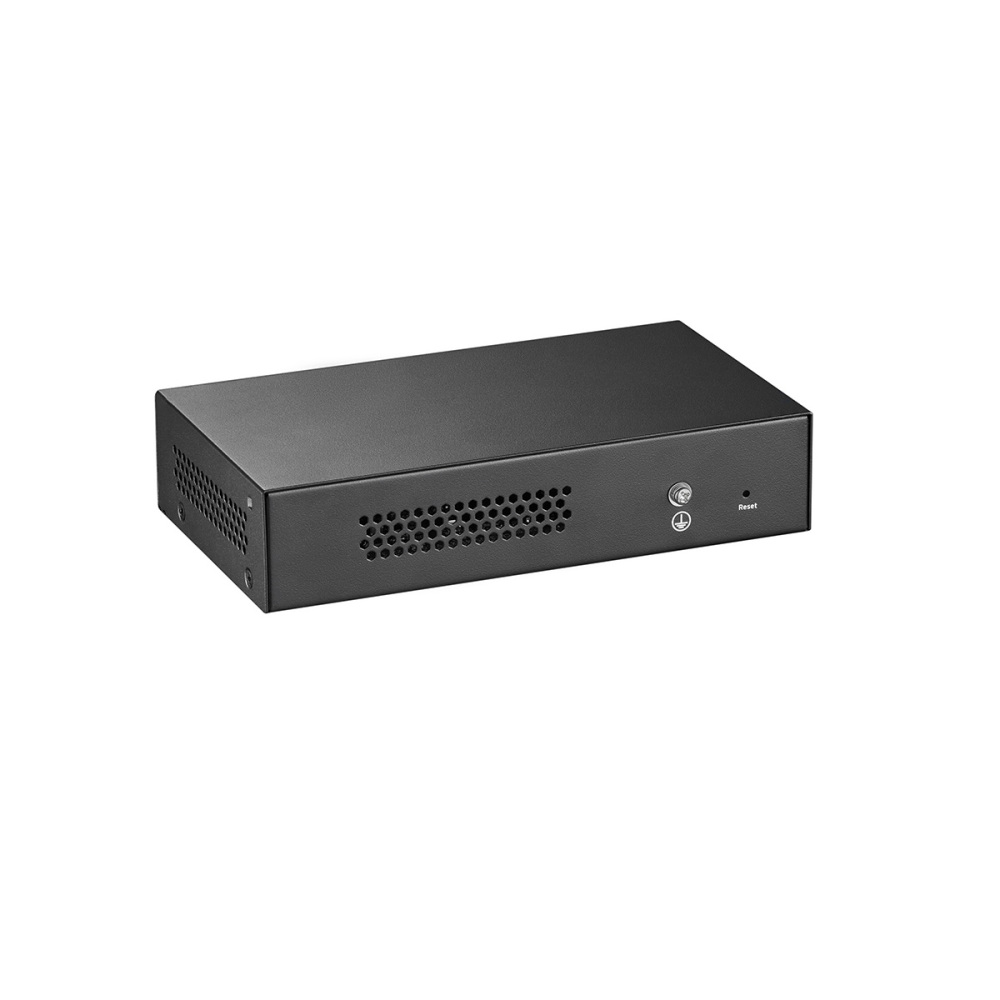

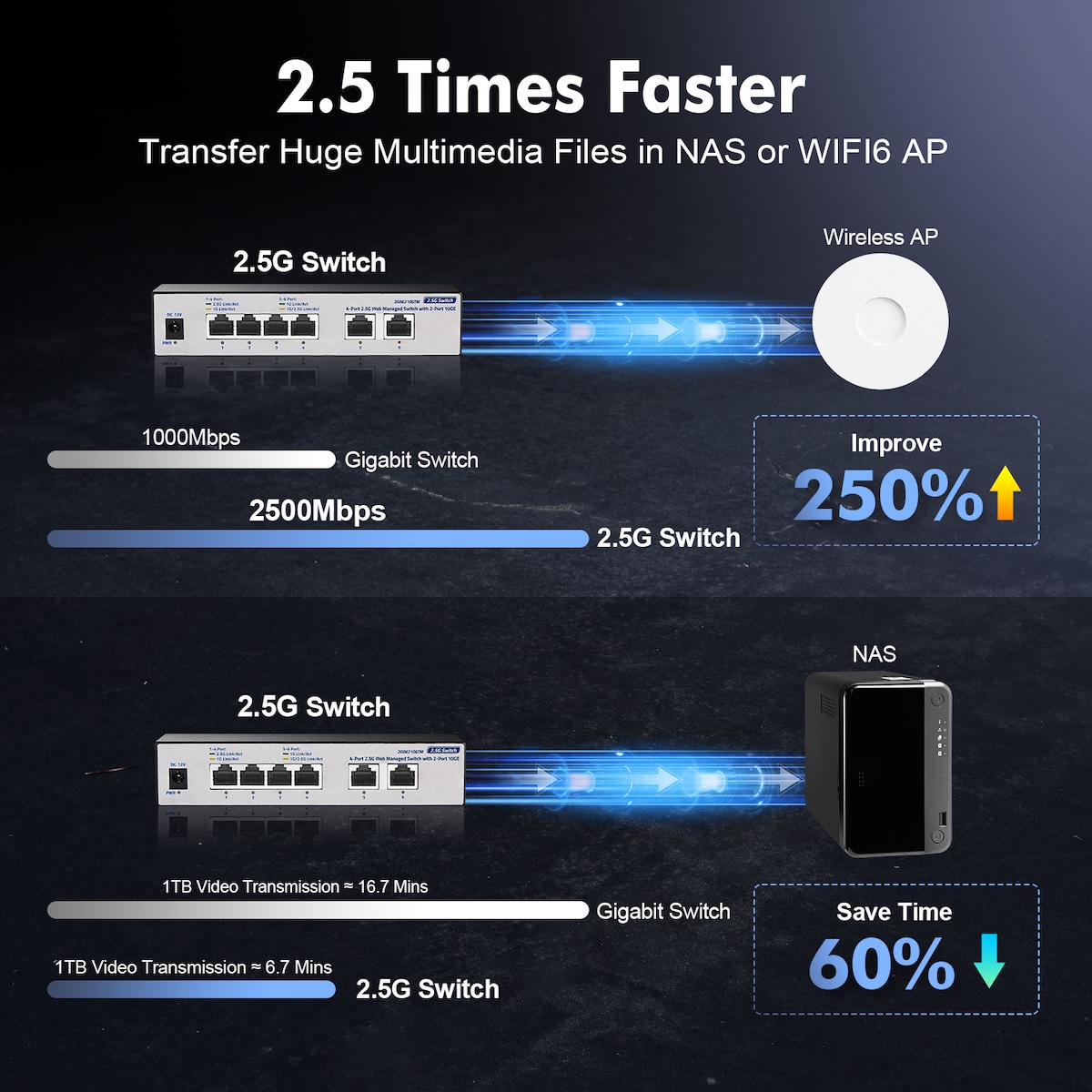

Versatile & Reliable Performance - Ideal for bandwidth-intensive scenarios: 4K/8K video streaming, gaming PCs, NAS (Network Attached Storage), WiFi 6 APs, and servers. It features a durable metal housing, supports both desktop and wall mounting, and adopts a fanless design (ensuring silent operation and low power consumption). Clear LED indicators allow for hassle-free real-time status monitoring.

4.9 (28 Reviews)

285 Sold

$129.99

Received successfully

Coupon Code

Product Highlights

4*2.5Gbps RJ45 ports and 2*10Gbps RJ45 ports Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE

802.3bz, IEEE 802.3z, IEEE 802.3ae, and IEEE 802.3x standards Ethernet Ports support

100M/1G/2.5G/10Gbps self-adaptive Support automatic port flipping (Auto MDI/MDIX) The panel indicator

LEDs will monitor the working status and assist in fault analysis Flow control method, full duplex adopts

IEEE802.3x standard, and half duplex adopts Backpressure standard Support QoS data priority

Support web management

Specification Parameters

Model	2G06210GTM
Interface	42.5Gbps RJ45 ports 210Gbps RJ45 ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3z (Gigabit Ethernet Fiber Standard) IEEE802.3bz (2.5G Ethernet) IEEE 802.3ae (10Gbps Ethernet) IEEE802.3x (Flow Control)
Switching Bandwidth	60Gbps
Packet Forwarding Rate	44.64Mpps
Packet Buffer	8Mbit
MAC Address Table	4K
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
Jumbo Frame	10K
Transmission Method	Store and Forward
Surge Protection	Port Surge: Common mode 4KV, Differential mode 1KV(Class B) Electrostatic ESD: Air 8KV, Contact 6KV(Class C)
Operating Temperature	0~40℃
Storage Temperature	-40~70℃
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
Power Supply	DC 12V1A
Mainboard Power Consumption	9.84W
Structure Information	Product Dimensions: 1609035mm Packaging Dimensions: 17512073mm Product Net Weight: 0.33KG Product Gross Weight: 0.47KG

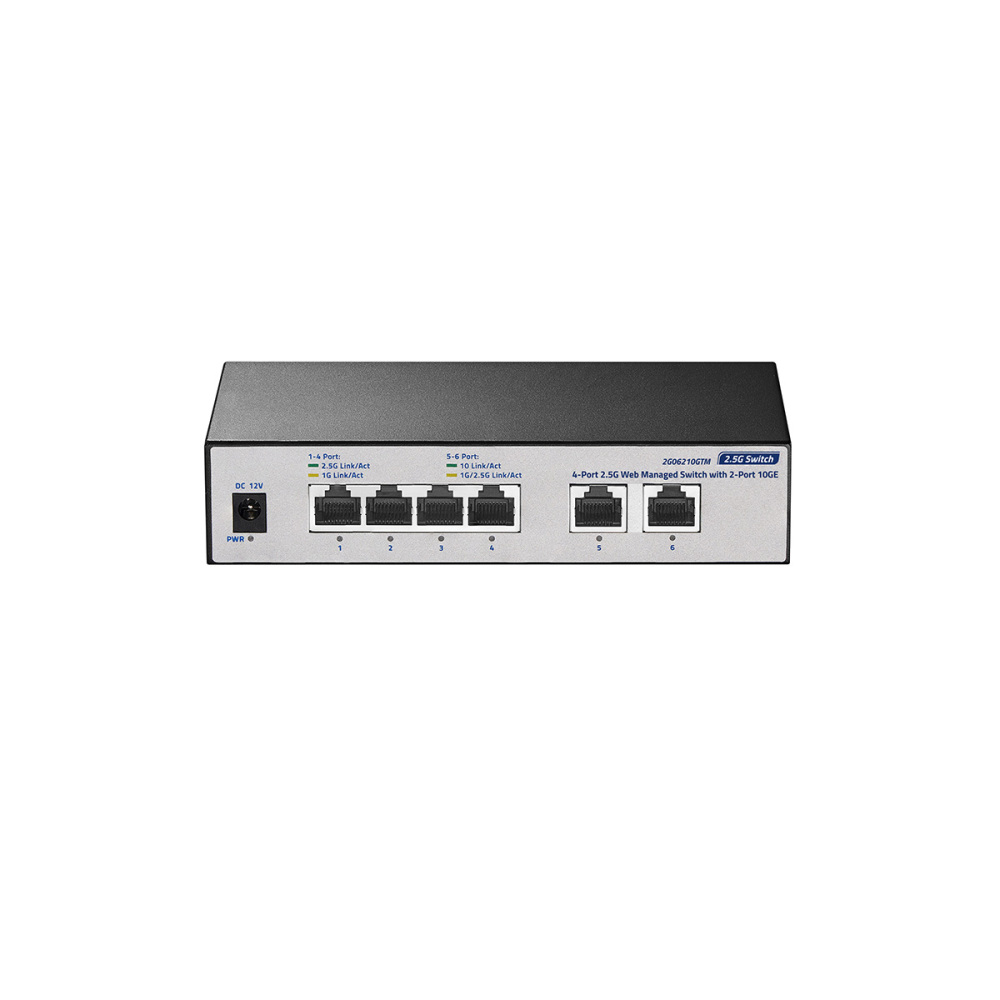

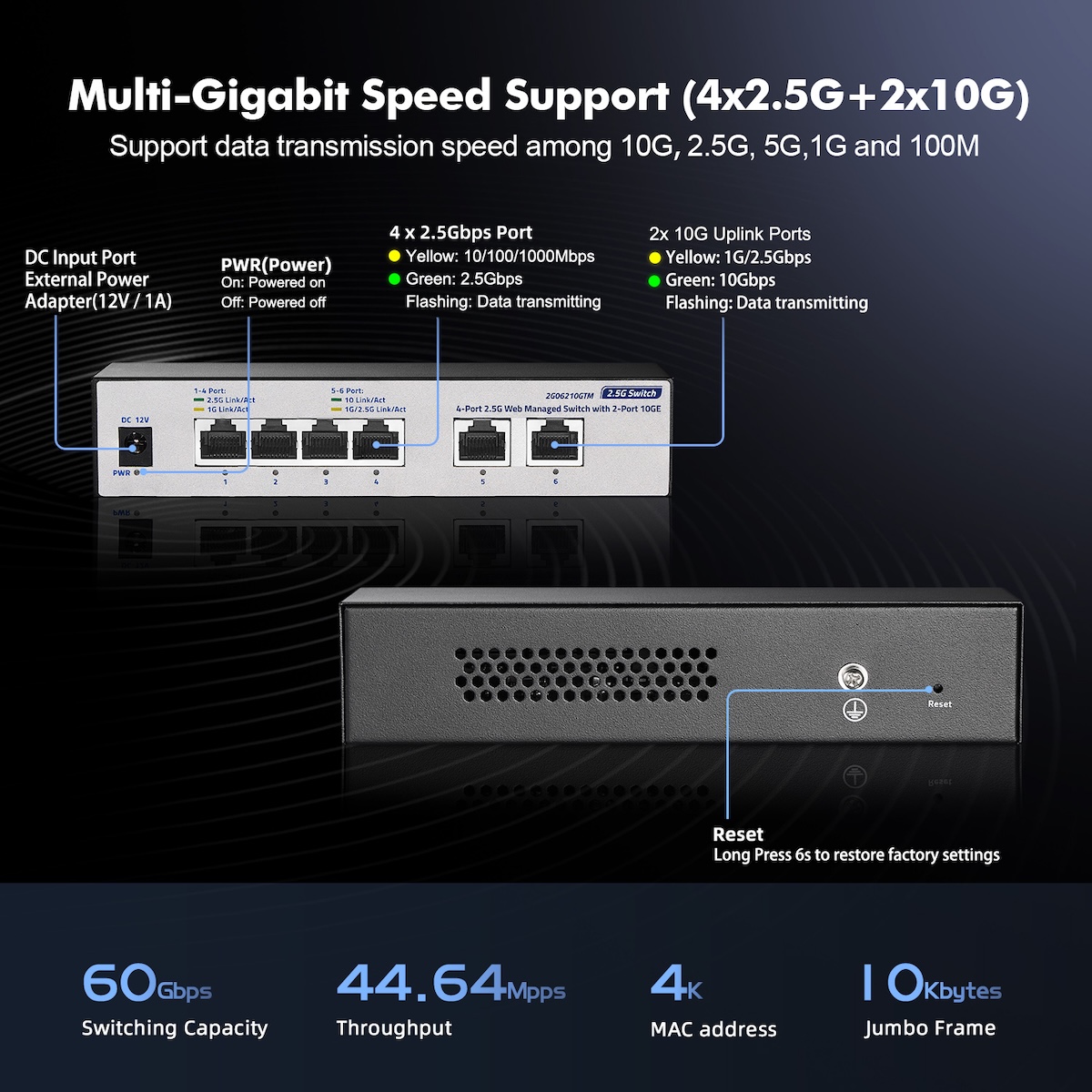

Ports 1-4	Green LED on: 2.5Gbps Link normal Yellow LED on: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting
Ports 5-6	Green LED on: 10Gbps Link normal Yellow LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting
L2 Function	Port configuration, Link Aggregation(Static Group/LACP), Storm Control, Port Mirroring, Loopback Detection, VLAN, STP/RSTP, IGMP, QoS, Port Statistics
