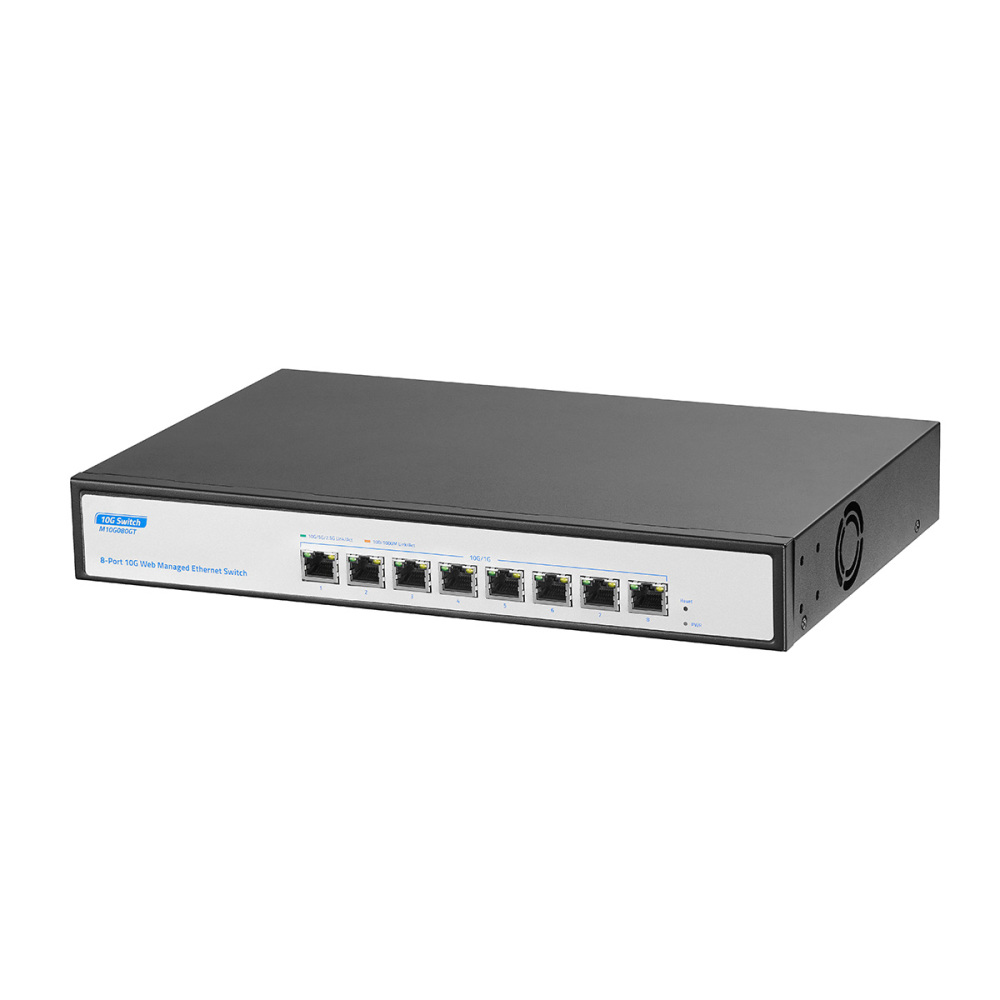

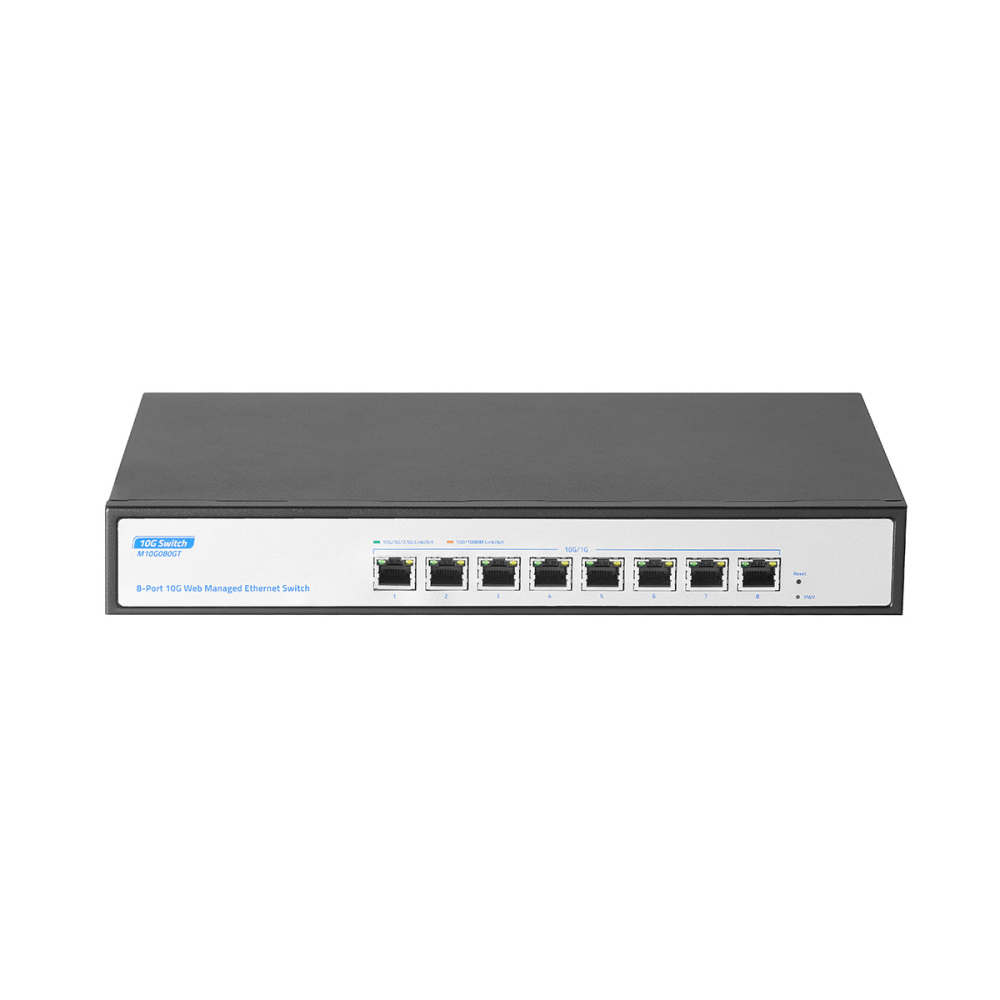

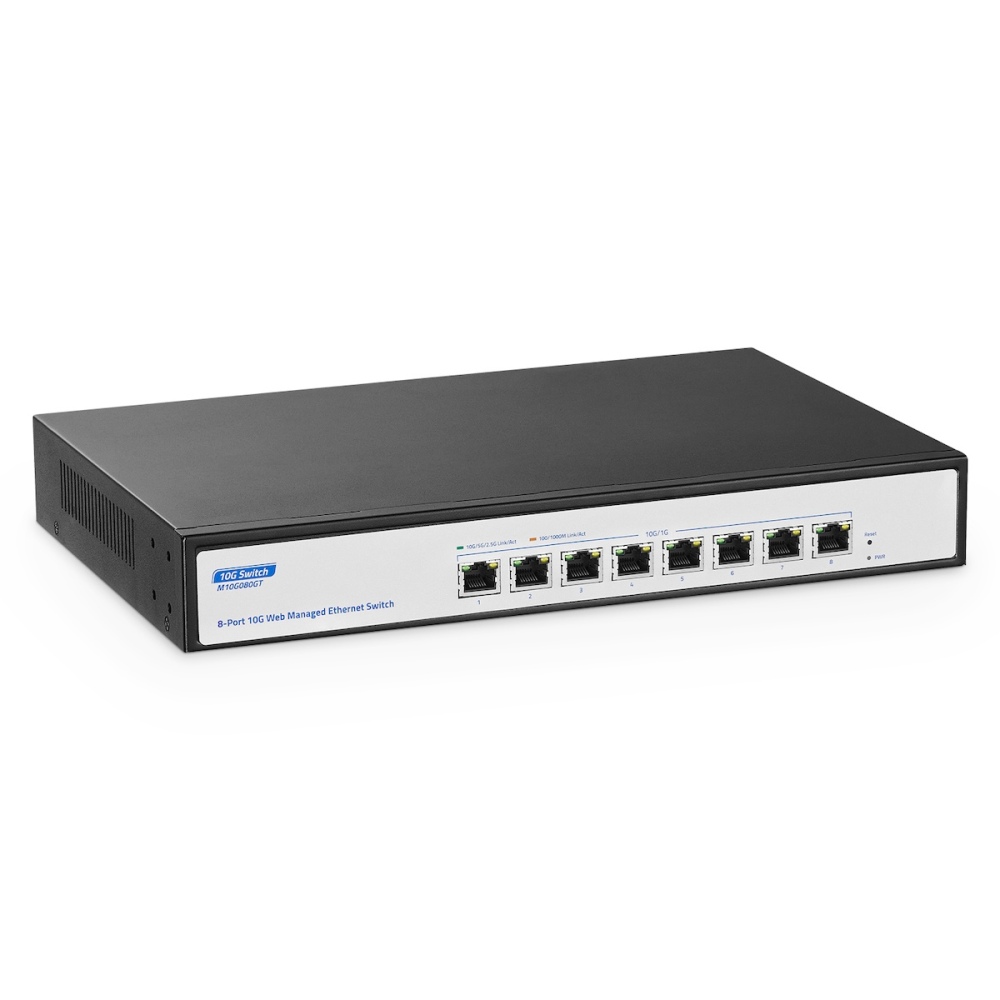

10G Switch 8 Port Managed, 10G/5G/2.5G/1000M Ethernet Auto-Negotiation, 160Gbps Bandwidth, Support LACP/QOS/VLAN/IGMP, Desktop/Rackmount YuLinca Managed Network Switch

SKU: M10G080GT

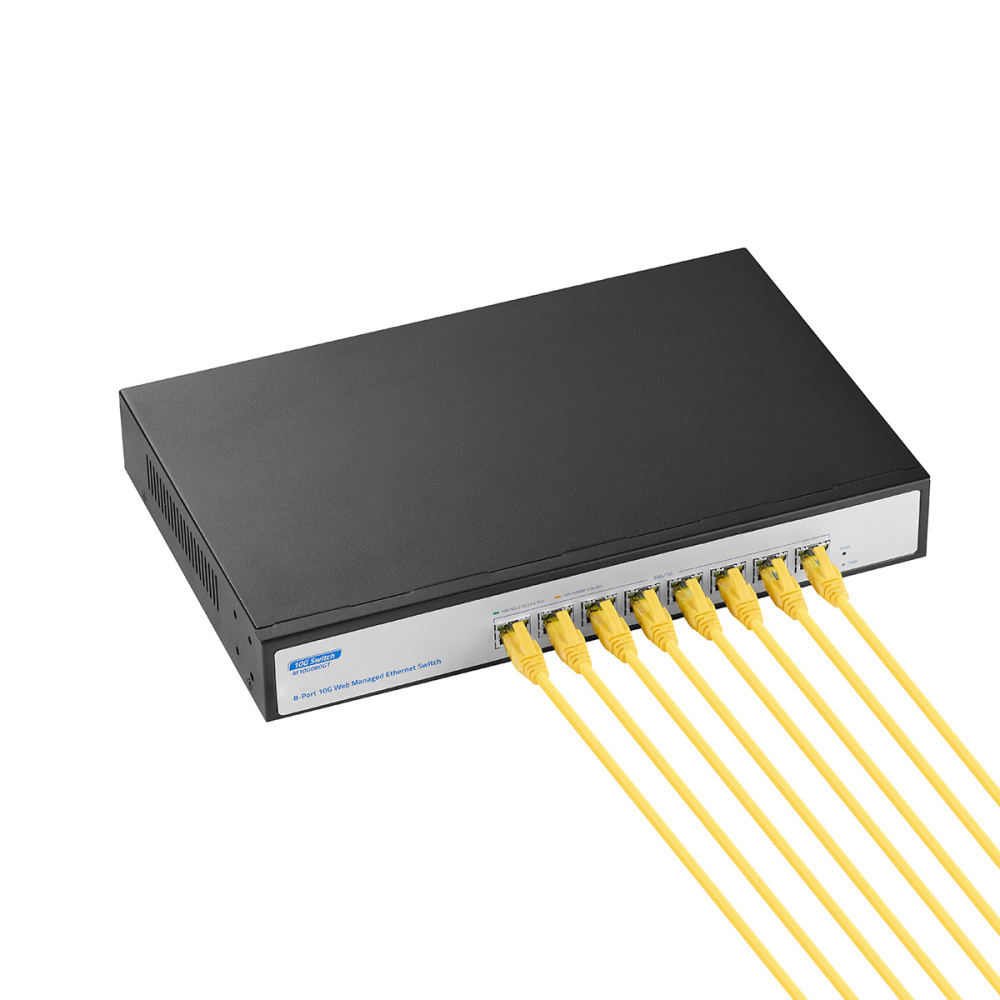

10G Ethernet Ports - Equipped with 8×10Gbps Ethernet ports, this switch enables high-bandwidth connectivity. Each port auto-adapts to 10G/5G/2.5G/1000M/100M speeds, supporting an extended rate range and automatically accommodating devices with different speed requirements.

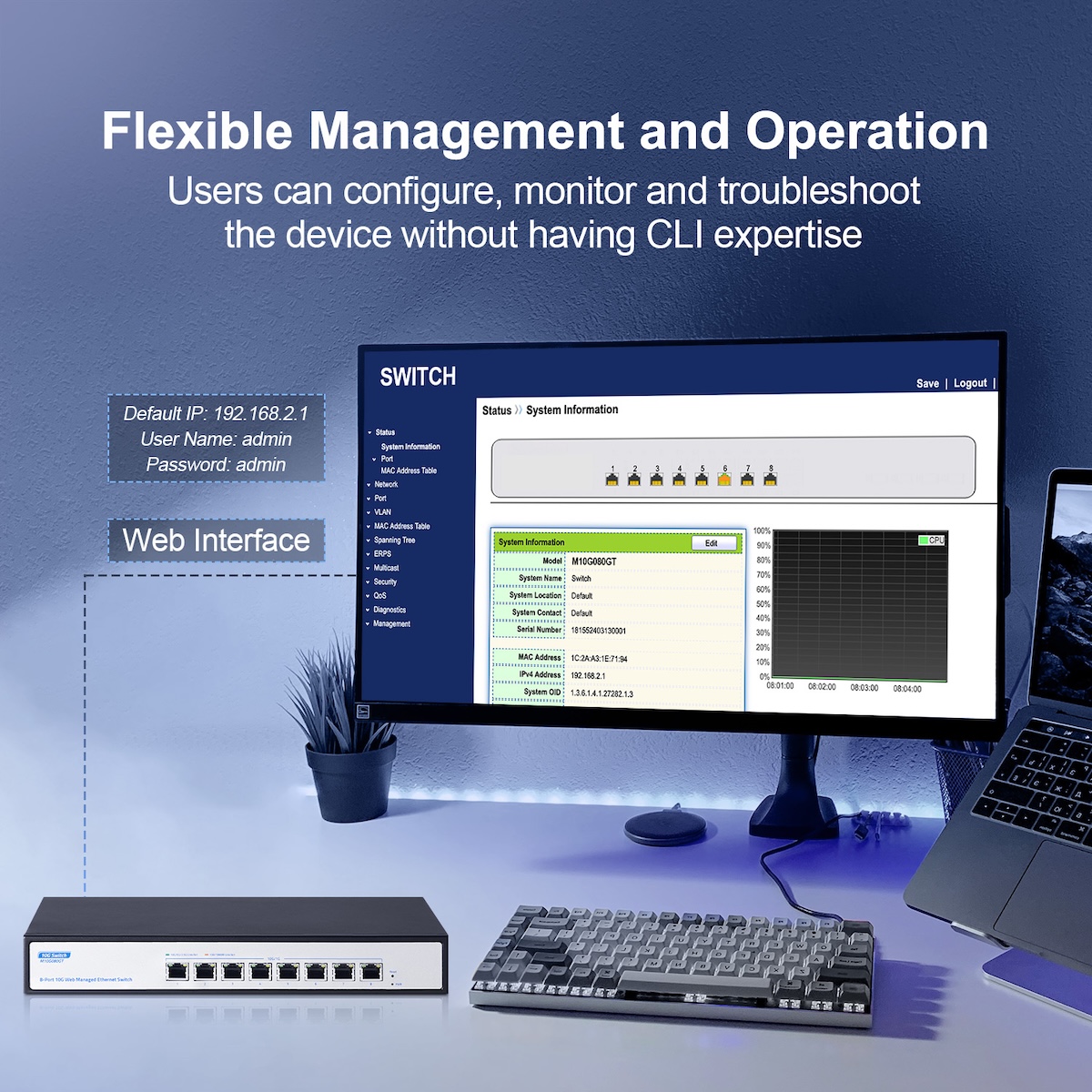

Web-Managed Switch - The switch features a web-based management interface (accessible via login), supporting device/port status queries and a comprehensive suite of Layer 2 (L2) configurations. These include VLAN, QoS, security settings, multicast management, MAC address table, Link Aggregation (LACP), Port Mirroring/Isolation/Rate Limiting/Security, Storm Control, Spanning Tree, diagnostic tools (e.g., Ping), and SNMP. NOTE: When making modifications via the web interface, please save the configuration to prevent data loss after reboot.
160Gbps Bandwidth - Boasting a switching capacity of 160Gbps, this 10Gbps switch allows all ports to deliver non-blocking 10G wire-speed forwarding, ensuring exceptional data processing performance even under high network traffic.

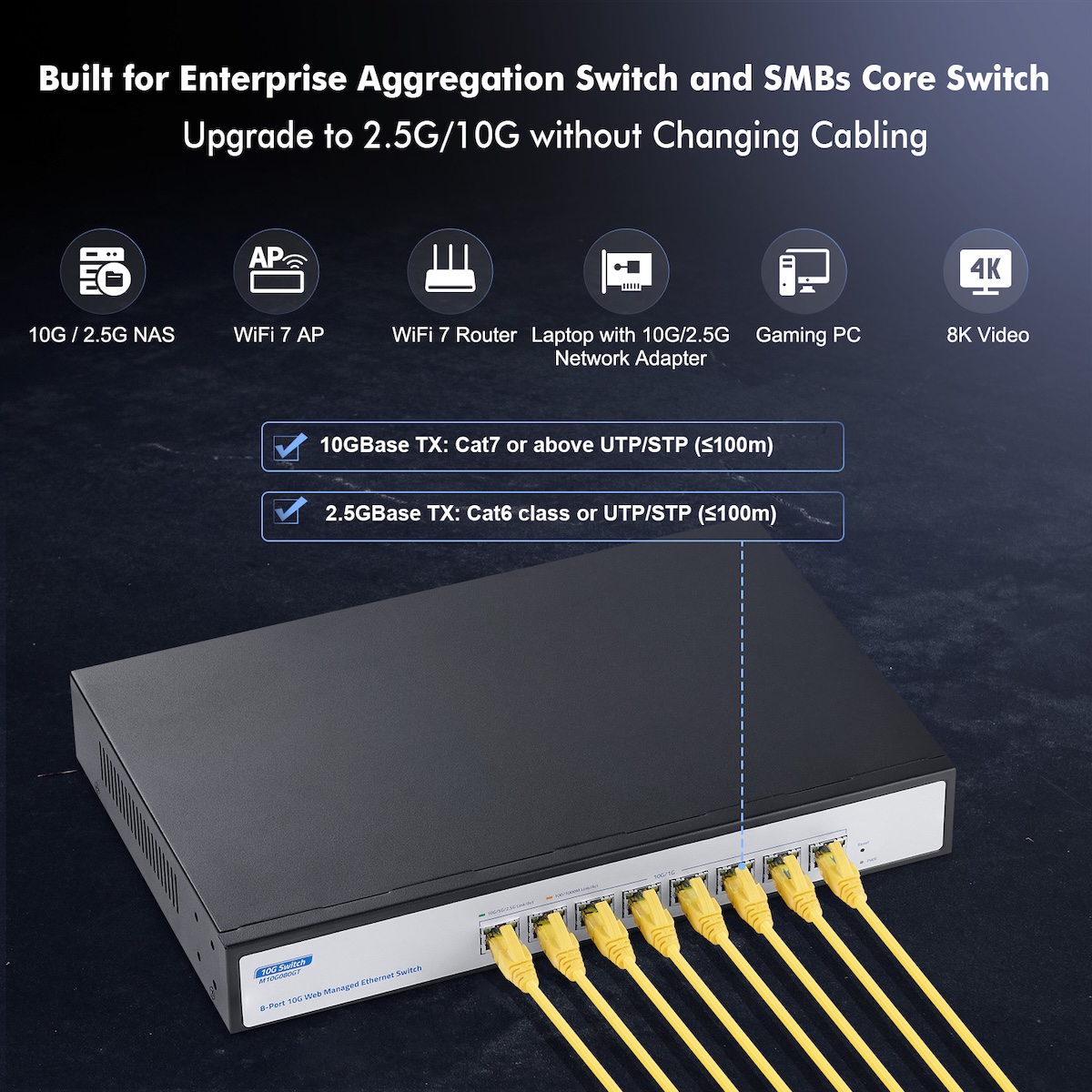

Supported Network Protocols - The 10G managed switch is compliant with key industry standards: IEEE 802.3ae (10G Ethernet), IEEE 802.3bz (2.5G/5G Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Flow Control), and IEEE 802.3az (Energy-Efficient Ethernet, EEE). Cabling requirements: For 1000Base-TX, use Cat5 or higher UTP (max 100m); for 10000Base-T, use Cat6 or higher UTP (max 50m).

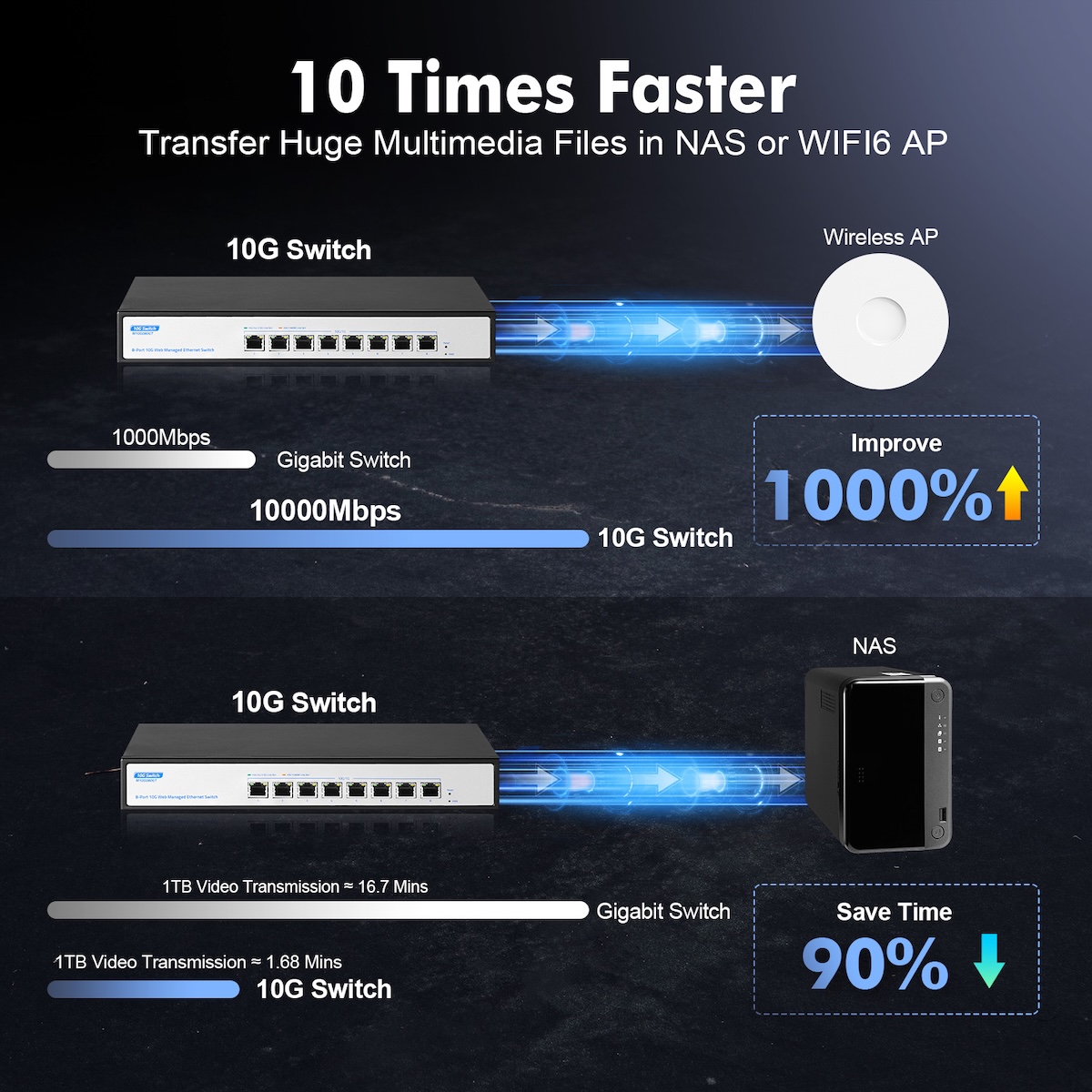

Versatile Applications - Constructed with a durable metal chassis, the 8-port 10G switch includes LED status indicators and an industrial-grade fan—ensuring efficient heat dissipation, energy savings, and stable operation. It supports desktop or rackmount installation (rack ears included) and functions as a core, distribution, or access-layer switch. Compatible with devices like 2.5G/5G/10G WiFi 6 APs, NAS systems, PCIe adapters/NICs, servers, and 8K video setups.

5.0 (51 Reviews)

335 Sold

$255.99

Received successfully

Coupon Code

Product Highlights

Support 8* 10G RJ45 Port;

Supports IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3ab，IEEE802.3z;

Ethernet ports support 1.25G/2.5G/10G self- adaptive;

Support port Auto MDI/MDIX;

Adopting a storage and forwarding exchange mechanism;

All ports support line speed switching;

Panel indicator lights monitor working status and help failure analysis;

Support QoS data priority;

Specification Parameters

Model	M10G080GT
Interface	8* 10G RJ45 Ports
Port Standard	IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) IEEE 802.3x: Flow Control IEEE 802.3az (Efficient and Energy saving Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE802.3 bz (2.5G/5G Ethernet standard)
Network Medium	10Base-T: Cat3, 4, 5 or above UTP/STP (≤ 100m) 100Base TX: Cat5 or above UTP/STP (≤ 100m) 1000Base TX: Cat5 or above UTP/STP (≤ 100m) 2.5GBase TX: Cat6 class or UTP/STP (s100m) 10GBase TX: Cat7 or above UTP/STP (100m)
Bandwidth	160Gbps
Packet Forwarding Rate	119.04Mpps
Packet Buffer	12Mbit
MAC Address Table	16K
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
Jumbo Frame	support
Transmission Method	Store and Forward
Power Supply	DC 12V 8A
Mainboard Power Consumption	38.6W
Structure Information	Product Size: 32020745mm Package Size: 37029085mm Product Net-Weight: 1.82KG Product Gross-Weight: 2.36KG

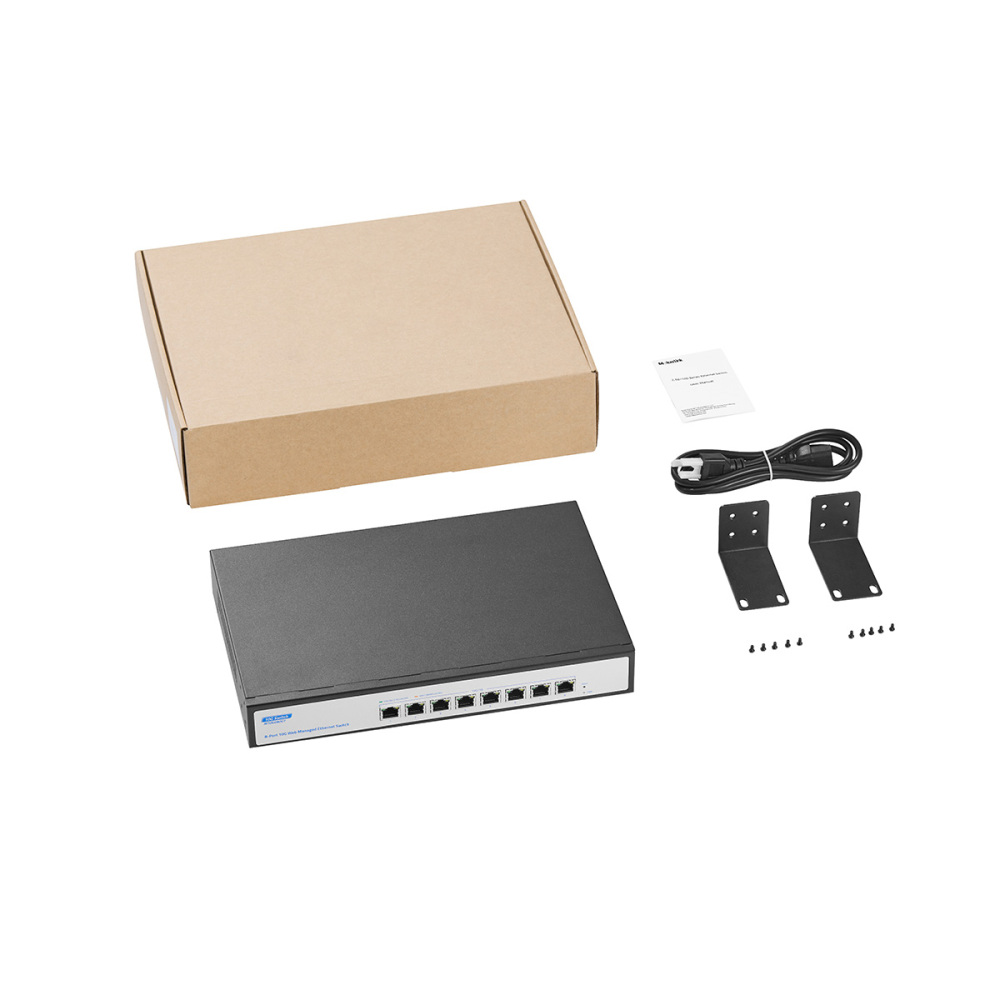

Package Contents	Switch 1pcs, ac adapter 1pcs, manual 1pcs
Fan Quantity	1
Installation	Desktop / Wall Mount
Surge Protection	Port Surge: Common mode 4KV,differential mode 2KV;(Class A) Electrostatic ESD: Air 8KV(Class B), Contact 6KV (Class A)
Environment	Operating Temperature: 0~40°C Storage Temperature: -40 °C to 70 °C Operation Humidity: 10%~90%，non condensing Storage Humidity: 5%~95%，non condensing
	PWR - On: Powered on, Off: Powered off

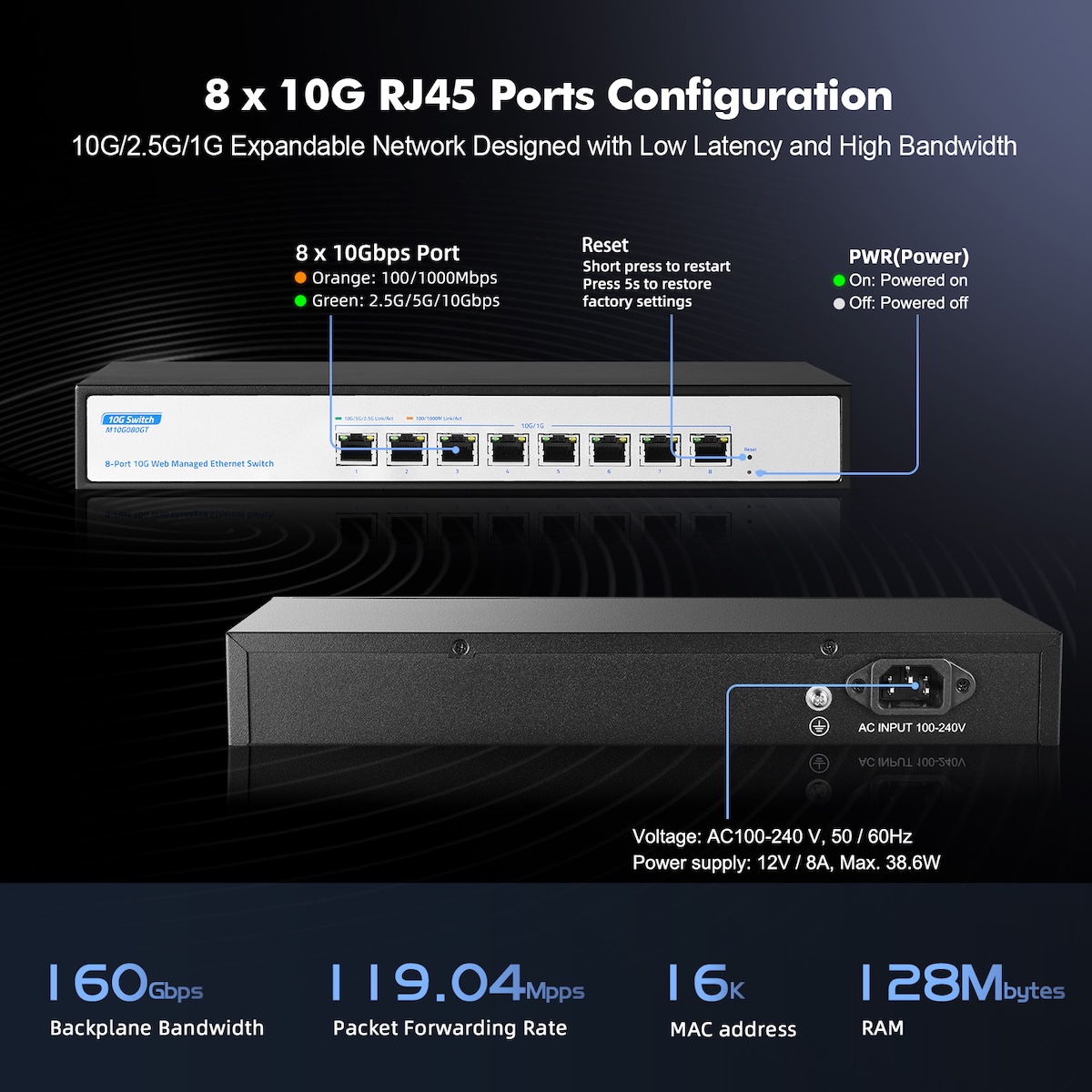

Led Indicator	PWR - On: Powered on, Off: Powered off SYS - On: System normal, Flashing: System startup 2.5G/5G/10G(Green Light) - On: Link connect normal, Flashing: Data transmitting, Off: Link off 100/1000M(Yellow Light) - On: Link connect normal, Flashing: Data transmitting, Off: Link off
RESET	Long press for 6 seconds to restore factory settings
L2 Function	Port configuration, Link Aggregation(Static Group/LACP), Storm Control, Port Mirroring, Loopback Detection, VLAN, STP/RSTP, IGMP, QoS, Port Statistics
